伯克斯酒店 Birks Hotel

感谢来自 NEUF architect(e)s 的分享 | Thanks for share from NEUF architect(e)s

加拿大 蒙特利尔 | Montréal, Canada

伯克斯酒店
伯克斯酒店 ©Adrien Williams

经过两年多的工作,NEUFarchitect(e)s宣布完成了对Birks建筑的主要翻新,最初建于1894年的菲利普斯广场上亨利Birks的珠宝店。

After over two years of work, NEUF architect(e)s is proud to announce the completion of major renovations on the Birks building, originally built in 1894 on Phillips Square for Henry Birks’s jewellery store.

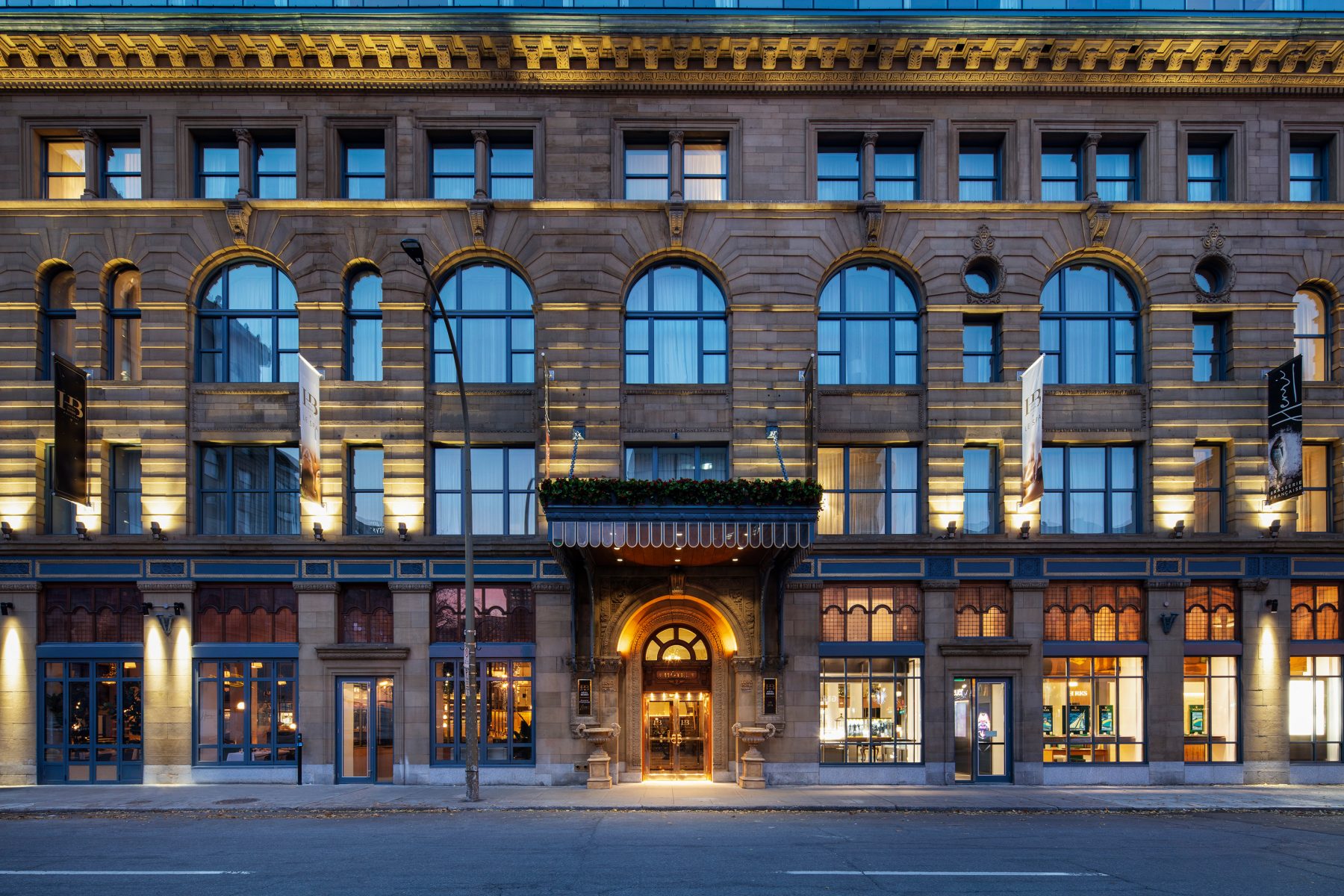

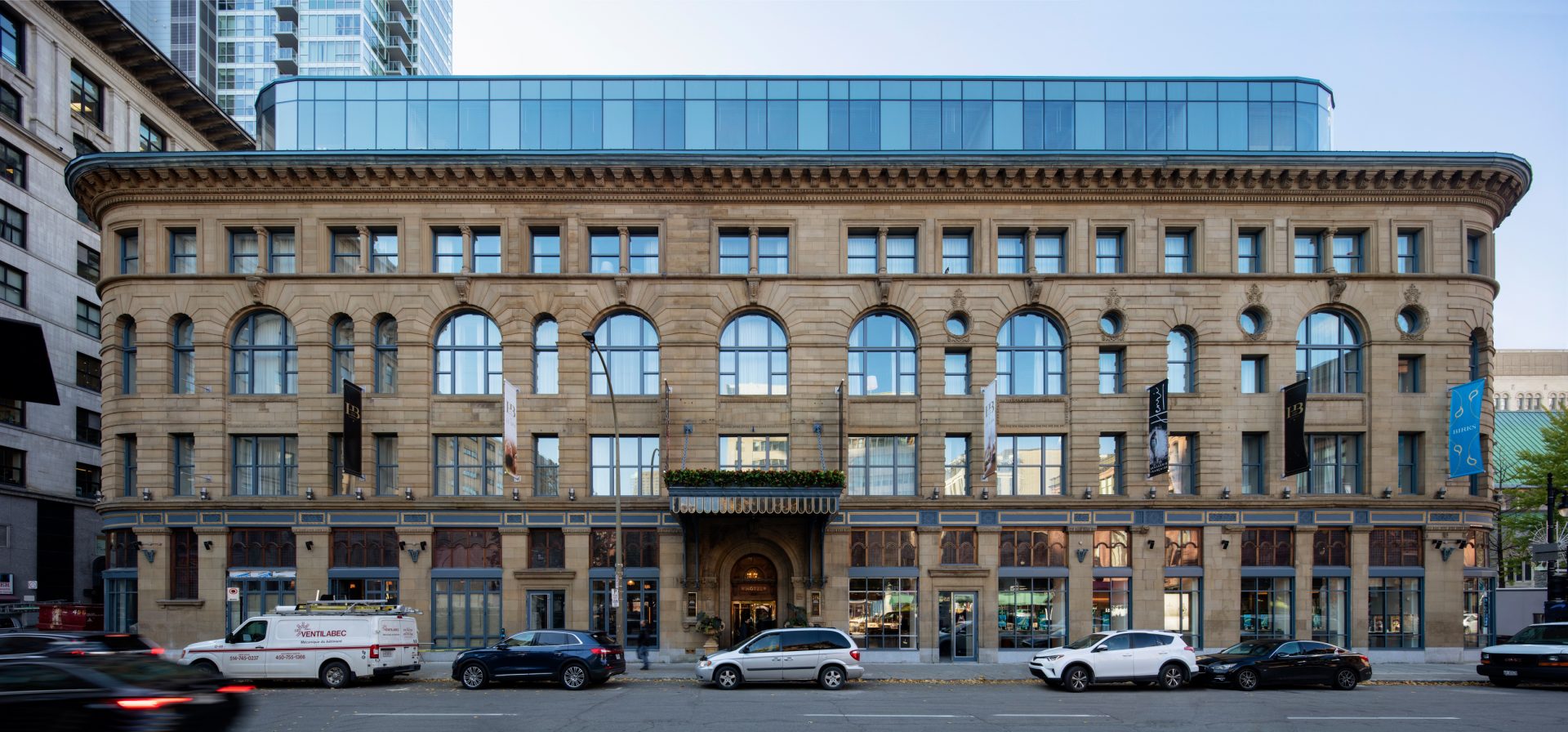

伯克斯酒店外立面
伯克斯酒店外立面 ©Adrien Williams
伯克斯酒店外立面 ©Adrien Williams
伯克斯酒店外立面 ©Adrien Williams

该建筑由著名的蒙特利尔建筑师爱德华·麦克斯韦尔设计,多年来经历了多次修改和改造,导致恶劣的条件,威胁到其保存。富有远见的酒店让Salette购买建筑在2016年和领先的专业团队来帮助实现一个雄心勃勃的项目,近20年来他梦想之一:改变和恢复这一历史性建筑成一个豪华的精品酒店,其中包括一个优雅的法国餐馆,同时保留原来的威望和著名的比尔克珠宝店。

Henry Birks & Sons was one of the first businesses established around Phillips Square, along with Morgan’s department store (now Hudson’s Bay) and Montreal’s first art gallery.

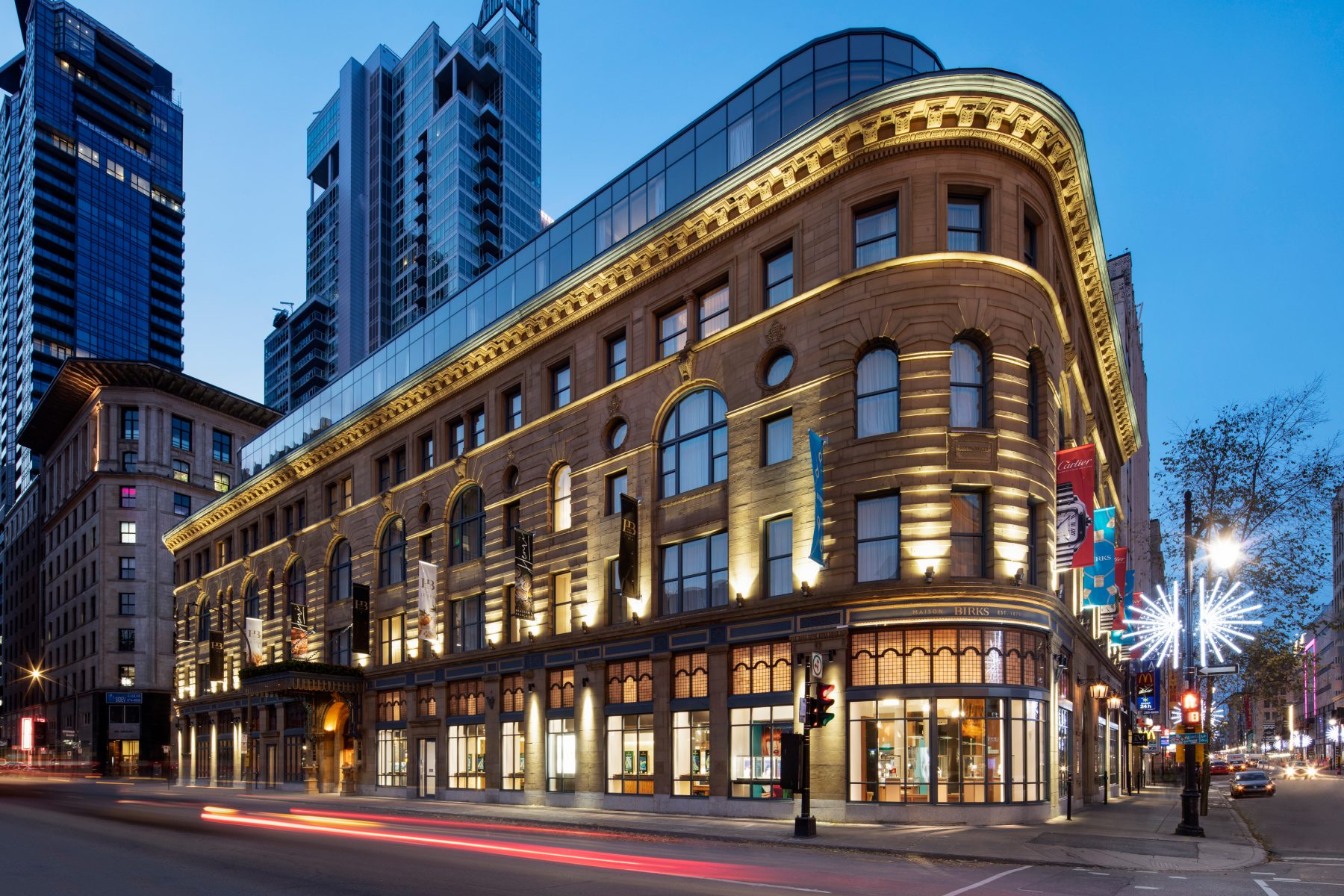

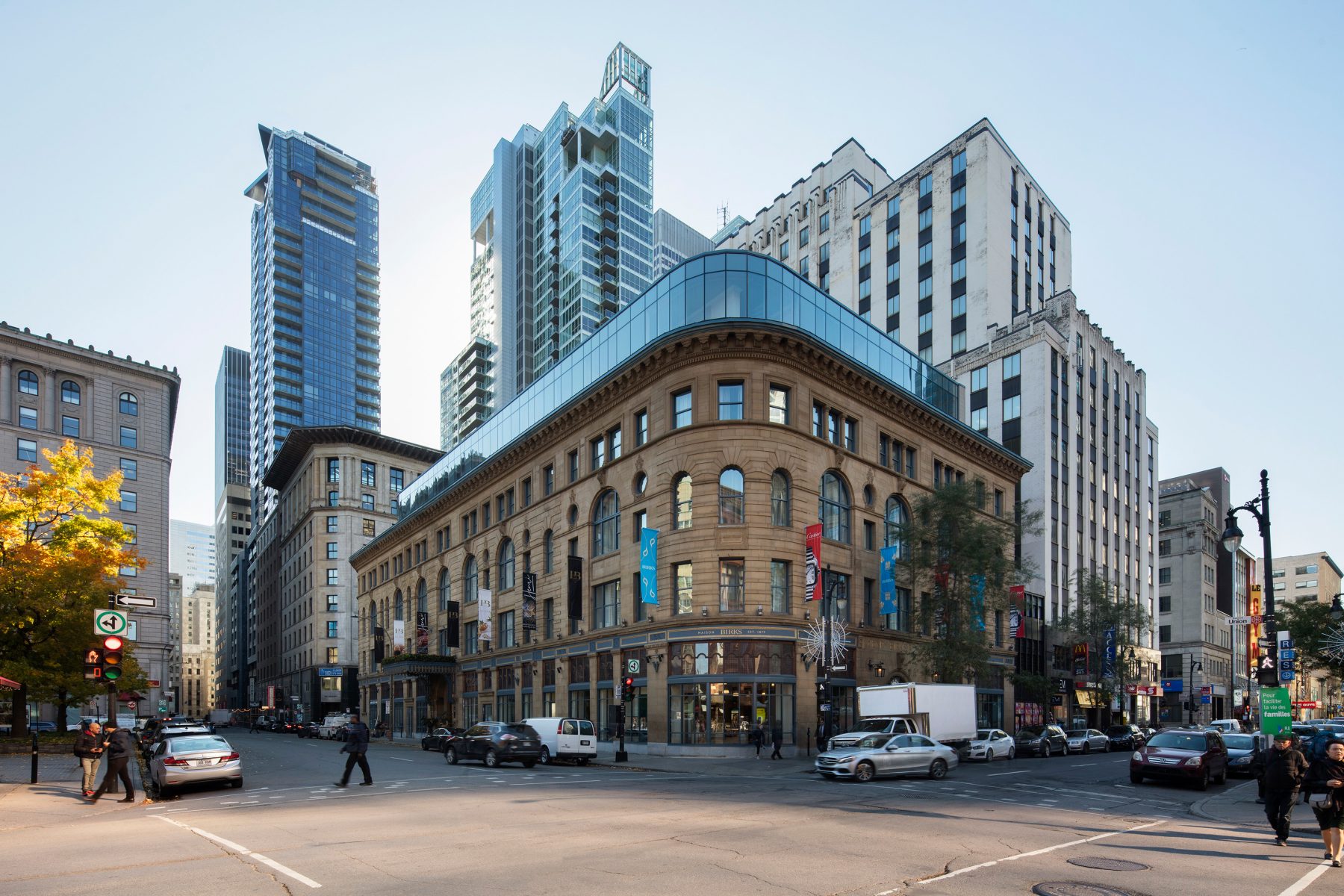

伯克斯酒店街景
伯克斯酒店街景 ©Adrien Williams

1894年至2019年:历史建筑的改造

合作建筑师Anh Le Quang和来自NEUF architects (e)s的Marion Thiebaux与设计师Nicole Vekemans合作,突出了这座历史建筑的显著特征。Marion Thiebaux说:“赋予这个独特的地标新的生命,它已经成为蒙特利尔城市景观的一部分将近125年了,这是我们非常自豪的成就。这些主要的修复工作不仅更新了建筑的功能,而且使公众更容易接近它。”

Partner architect Anh Le Quang and Marion Thiébaux from NEUF architect(e)s worked with designer Nicole Vekemans to highlight the remarkable character of this historic building. According to Marion Thiébaux: “Giving new life to this unique landmark that has been part of Montreal’s urban landscape for almost 125 years is an accomplishment we are very proud of. These major restoration efforts not only renew the building’s function but also make it more accessible to the public.”

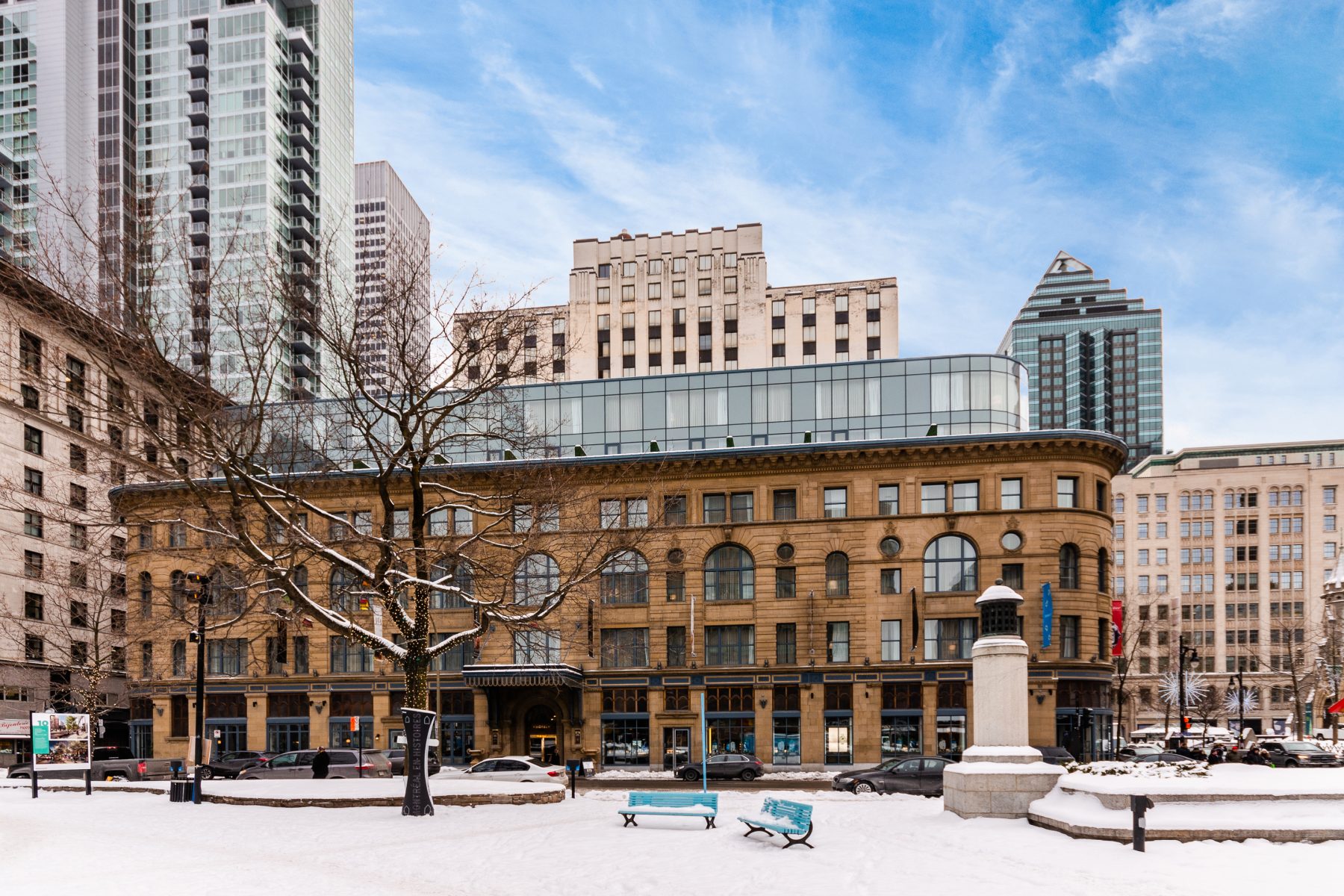

伯克斯酒店冬季街景
伯克斯酒店冬季街景 ©Alexandre Parent

亨利•伯克斯父子公司是最早在菲利普斯广场周边建立的企业之一,摩根百货公司(现为哈德逊湾)和蒙特利尔第一家艺术画廊也在这里开业。因此,那个时代富有的客户被吸引到这个广场,鼓励其他企业在这里落户。圣凯瑟琳街的商业发展至今仍在继续,吸引了更多具有包容性的观众。

A two-storey glass volume now crowns the building – a subtle intervention that respectfully contrasts the richly ornamented façade while evoking the original diamond workshop.

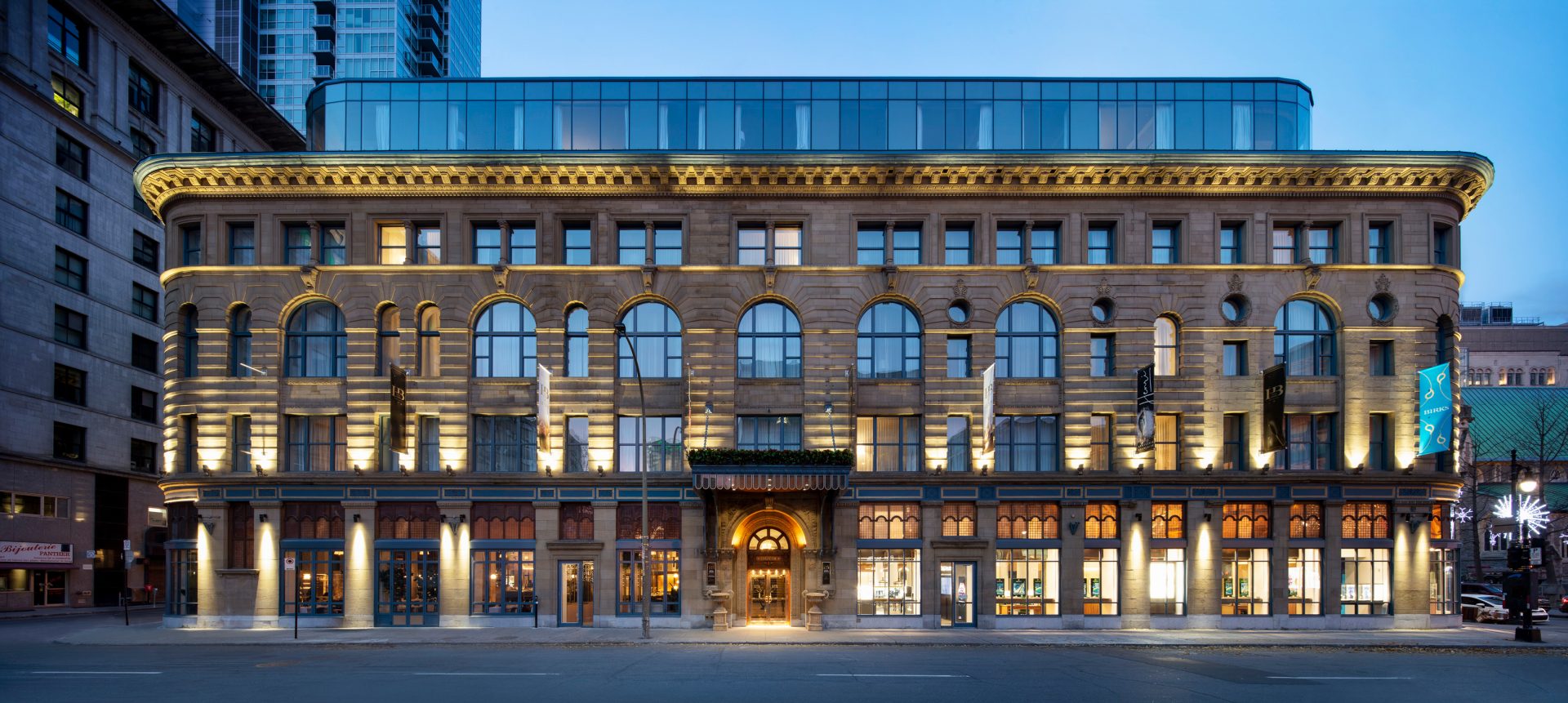

伯克斯酒店外立面
伯克斯酒店外立面 ©Adrien Williams

随着时间的推移,被替换或部分堵塞的店面窗户得到了修复。多年来,由于在建筑的内部立面增加了一个电梯井,一些面向公园的窗户受到了谴责。竖井被重新安置到建筑内部,恢复了它们的透明度和与广场的视觉联系。楼上原先是该公司的办公空间,后来改成了132间酒店客房。一个两层的玻璃体块现在覆盖了建筑——一个微妙的干预,尊重地对比了装饰华丽的立面,同时唤起了最初的钻石车间。在地下,废弃的机械房和拱顶被改造成水疗中心。最后,由Jean Salette和l ‘Atelier Zebulon Perron合作设计的新餐厅Henri Brasserie Francaise占据了一层面向广场的部分空间。

Storefront windows that had been replaced or partially obstructed over time were restored. Over the years, several park-facing windows had been condemned by the addition of an elevator shaft to the interior façade of the building. The shaft was relocated to the interior of the building, restoring their transparency and the visual connection to the Square. The upper floors, previously the business’s office space, were converted into 132 hotel rooms. A two-storey glass volume now crowns the building – a subtle intervention that respectfully contrasts the richly ornamented façade while evoking the original diamond workshop. Below grades, obsolete mechanical rooms and vaults were converted into a spa. Finally, the new restaurant Henri Brasserie Française, conceived by Jean Salette in collaboration with l’Atelier Zébulon Perron, occupies a portion of the ground floor facing the Square.

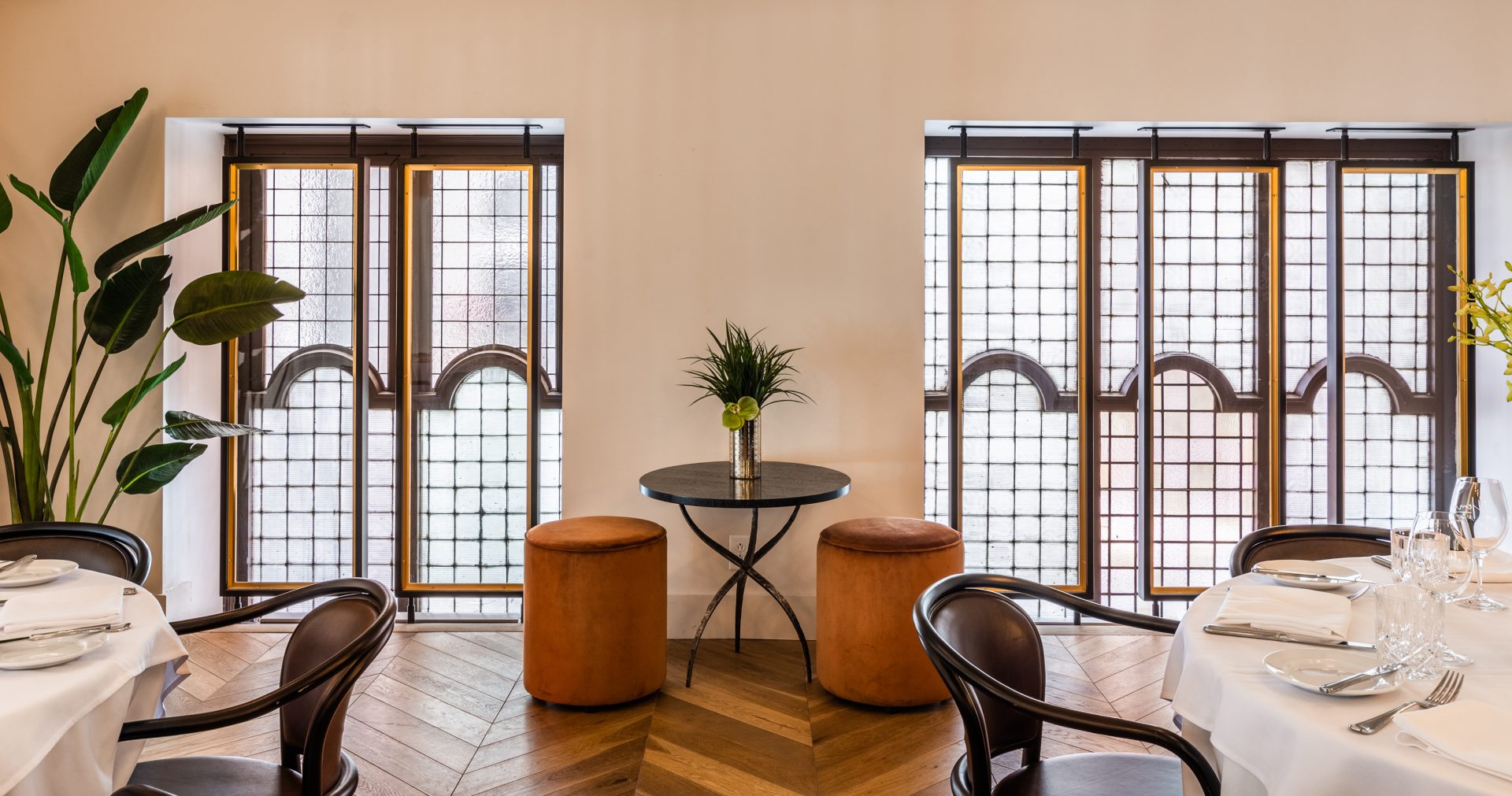

伯克斯酒店Henri Brasserie Francaise餐厅
伯克斯酒店Henri Brasserie Francaise餐厅 ©Alexandre Parent

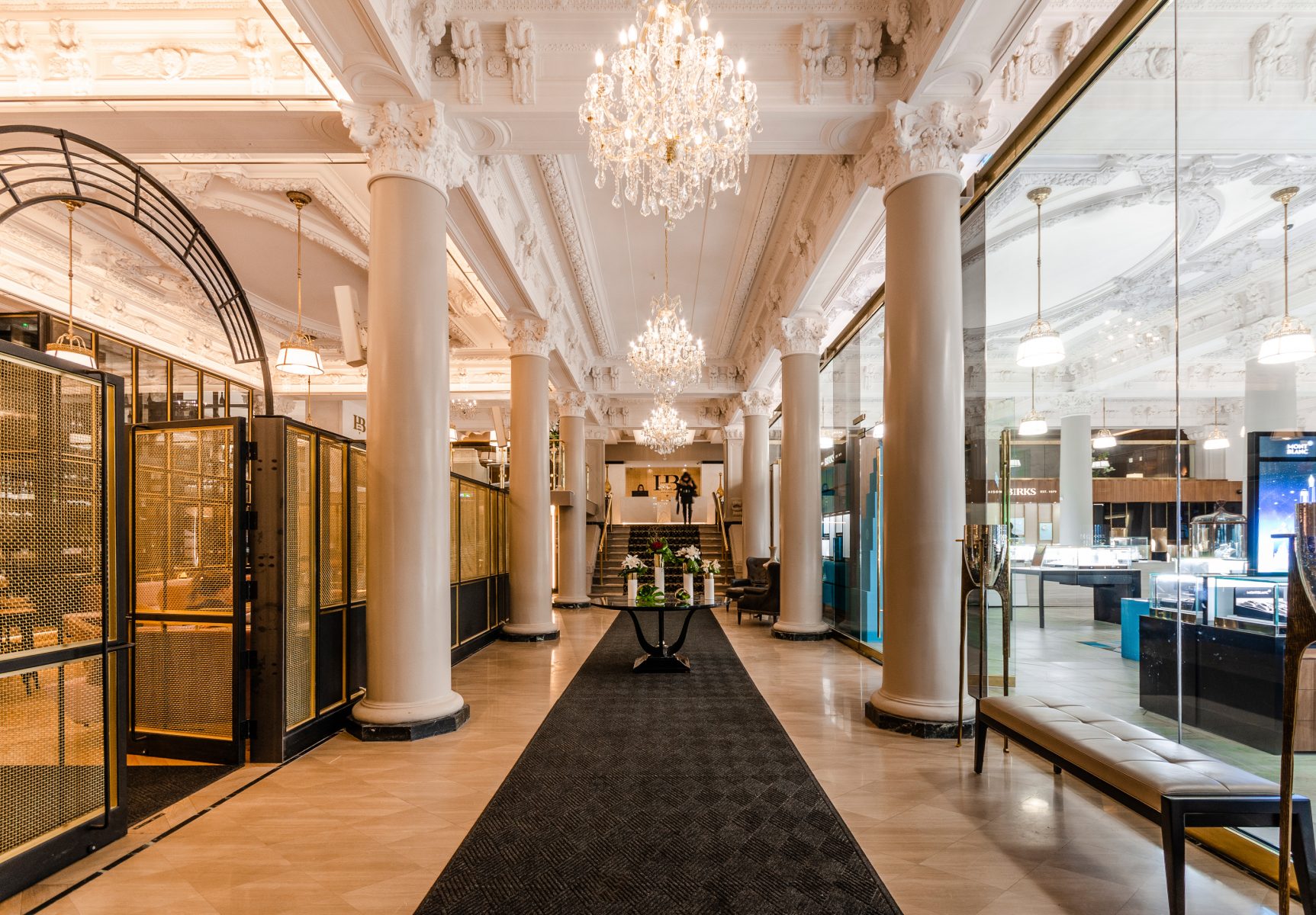

伯克斯酒店大堂
伯克斯酒店大堂 ©Adrien Williams

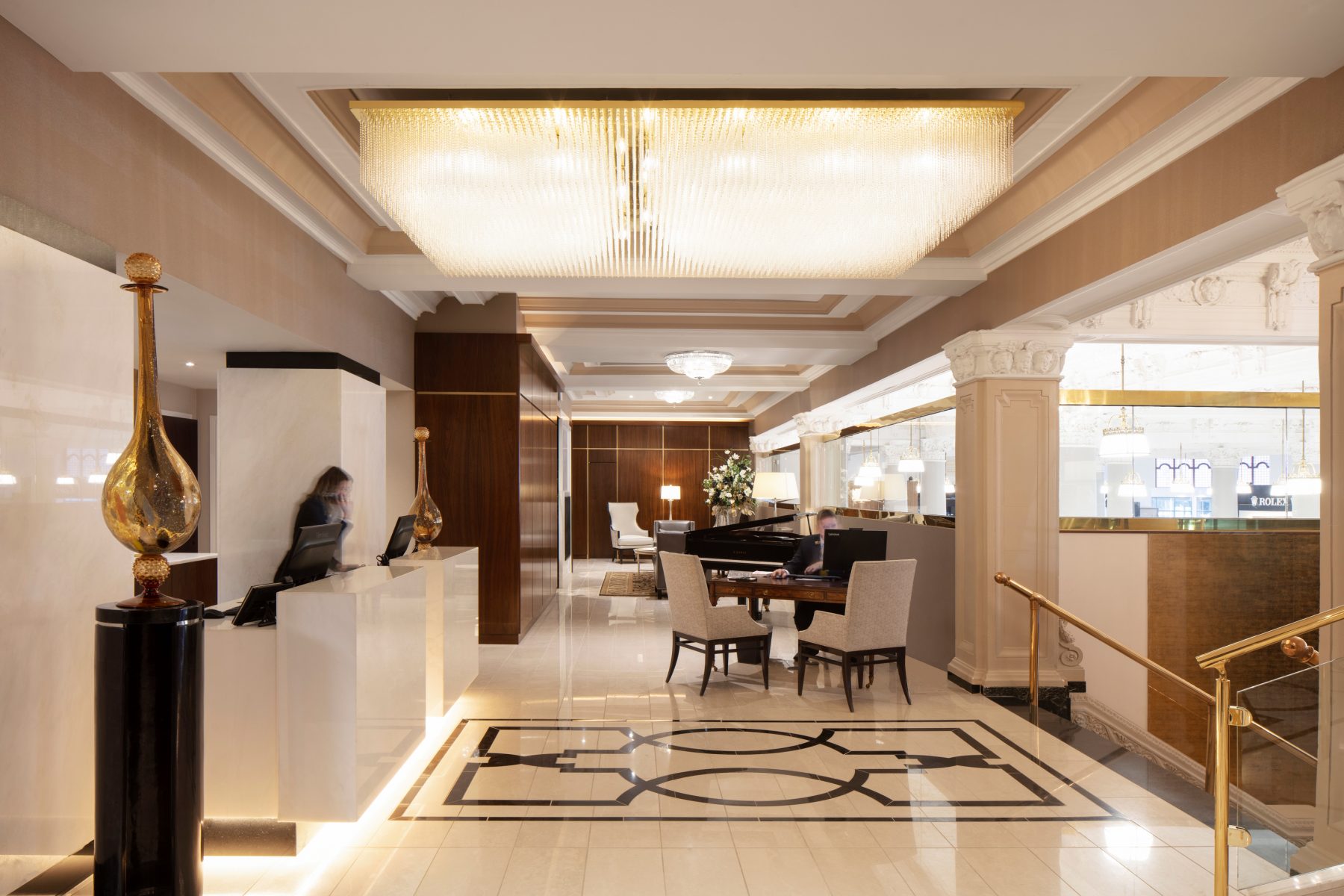

伯克斯酒店大堂
伯克斯酒店大堂 ©Alexandre Parent

建筑师试图保留现有的历史元素,同时更新建筑系统,以纠正严重的缺陷。天花板上原有的石膏模型通过安装一个专门的洒水系统得以保留,这对于适应建筑的新用途是必要的。在创建房间布局时,仔细考虑了现有的柱子,并将其整合到平面图中;因此,每个房间都是独特的,有自己独特的品质。对细节的高度重视不仅体现在美学元素上,也体现在保证建筑寿命的关键部件上。

The architects sought to preserve existing historical elements while updating the building systems to correct serious deficiencies. The original plaster mouldings adorning the ceiling were preserved by installing a specialized sprinkler system, necessary to accommodate the building’s new use. When creating the room layout, existing columns were carefully considered and integrated into the plans; each room is thus unique and has its own distinctive quality. Great attention to detail was paid not only to aesthetic elements but also to vital components that would ensure the building’s longevity.

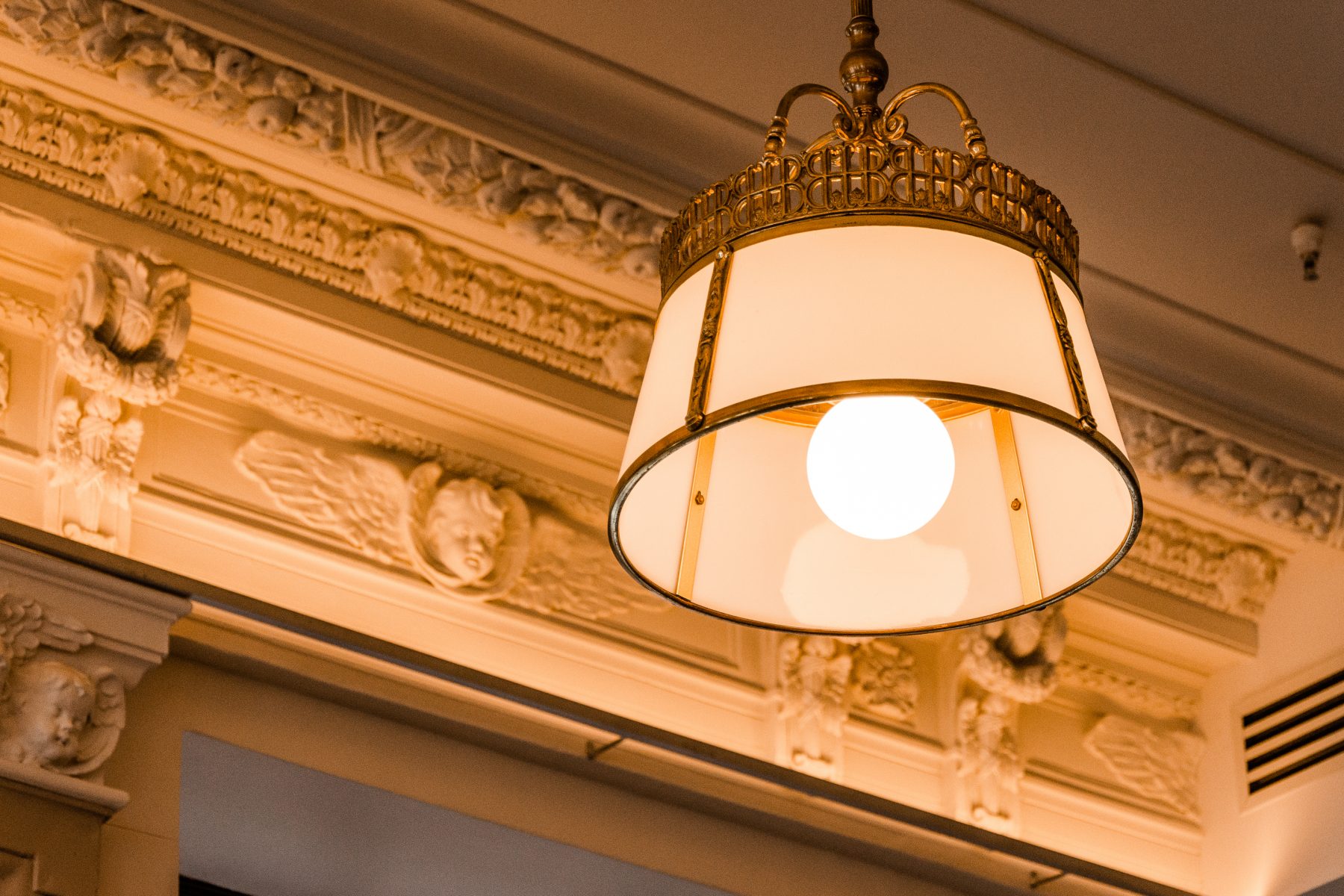

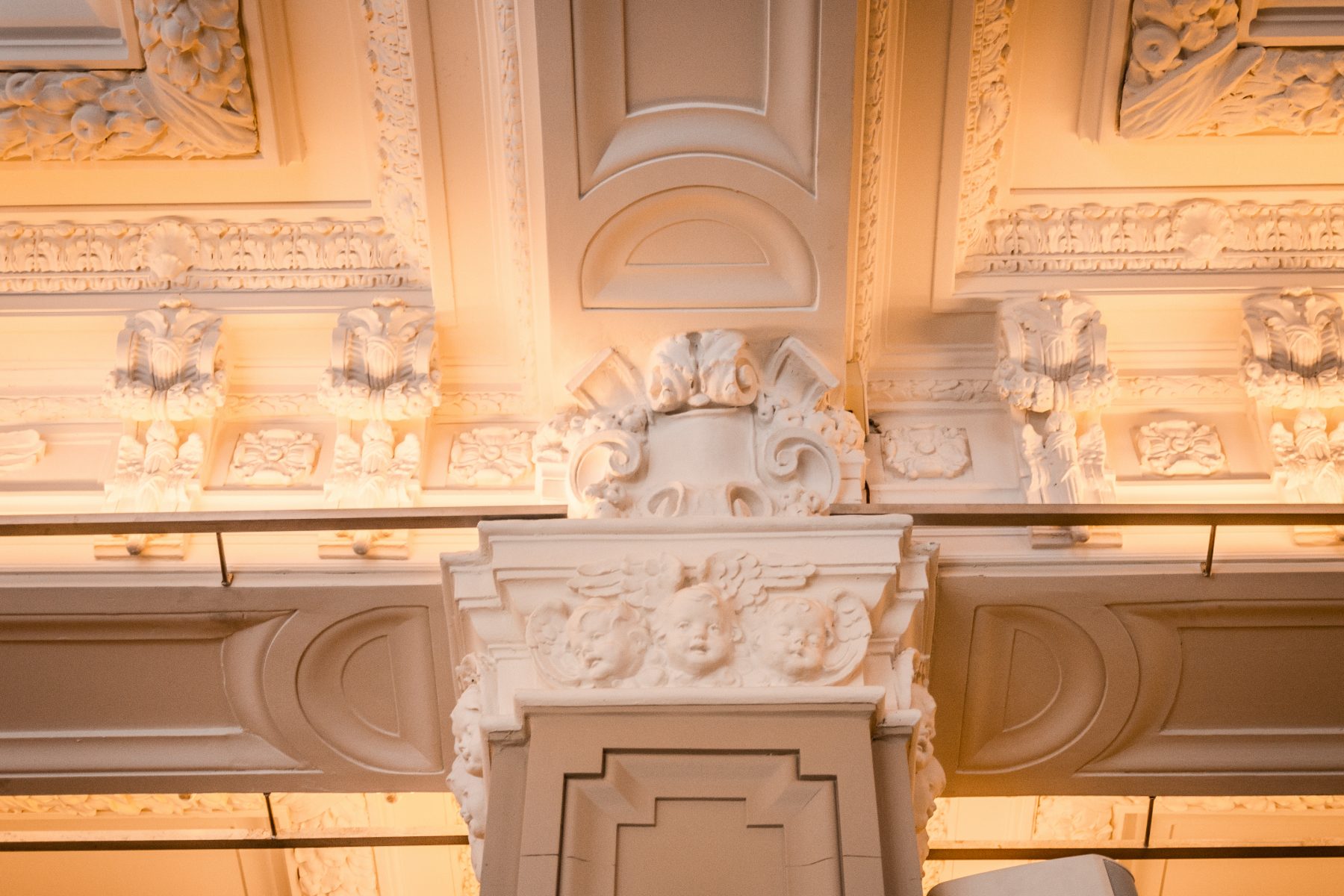

细部
细部 ©Alexandre Parent
细部
细部 ©Alexandre Parent

通过唤起在蒙特利尔历史上都留下印记的企业和个人的过去,NEUF成功地重申了爱德华·麦克斯韦标志性的菲利普斯广场地标的存在。这些努力确保了亨利•伯克斯父子公司的建筑将在未来几代人的城市文化景观中继续脱颖而出。

By evoking the past of a business and individual that have both left marks on Montreal’s history,NEUF successfully reasserts the presence of Edward Maxwell’s iconic Phillips Square landmark. These efforts have ensured the Henry Birks & Sons’ building will continue to stand out in the city’s cultural landscape for generations to come.

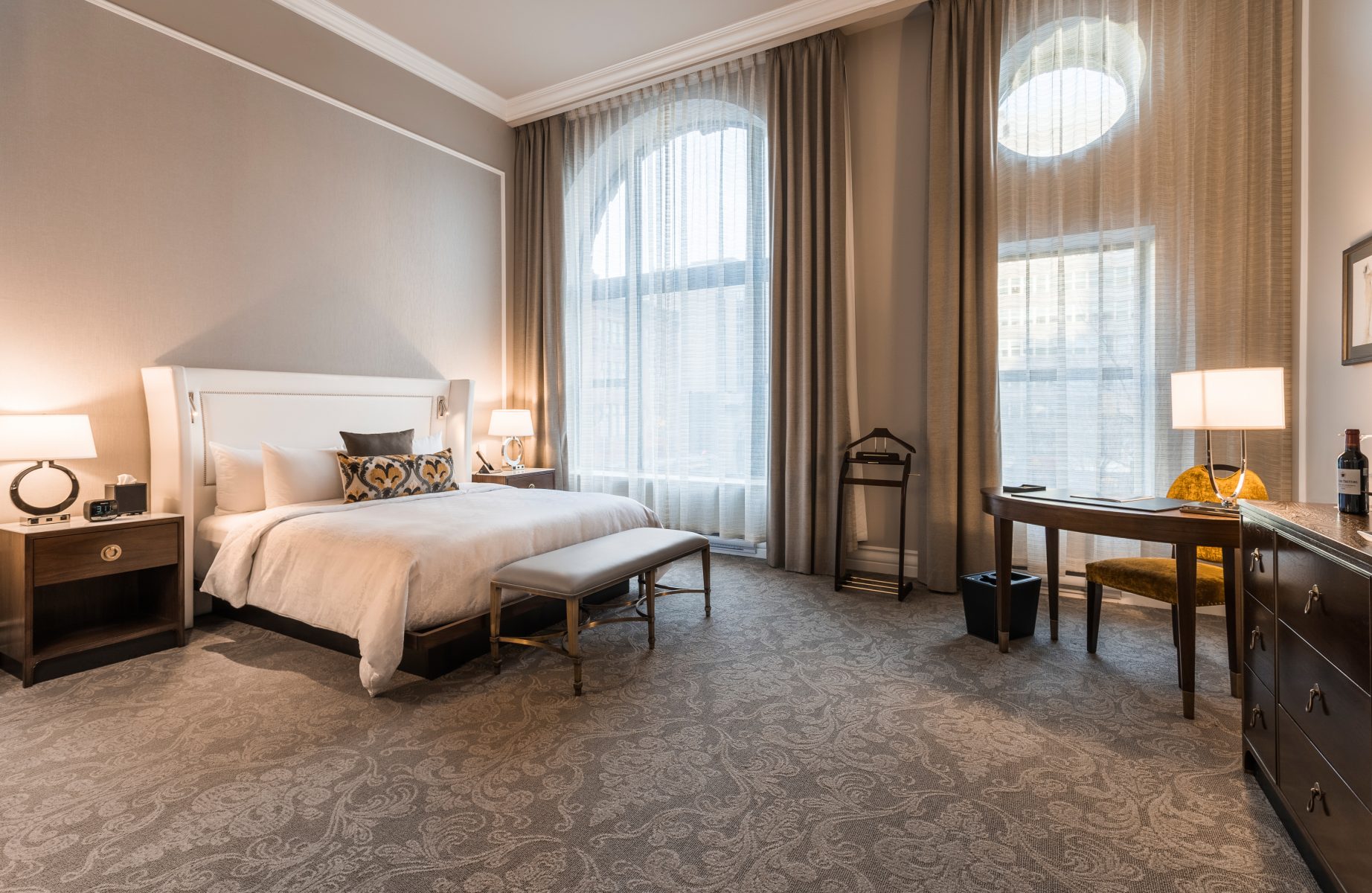

客房
客房 ©Felix Audette

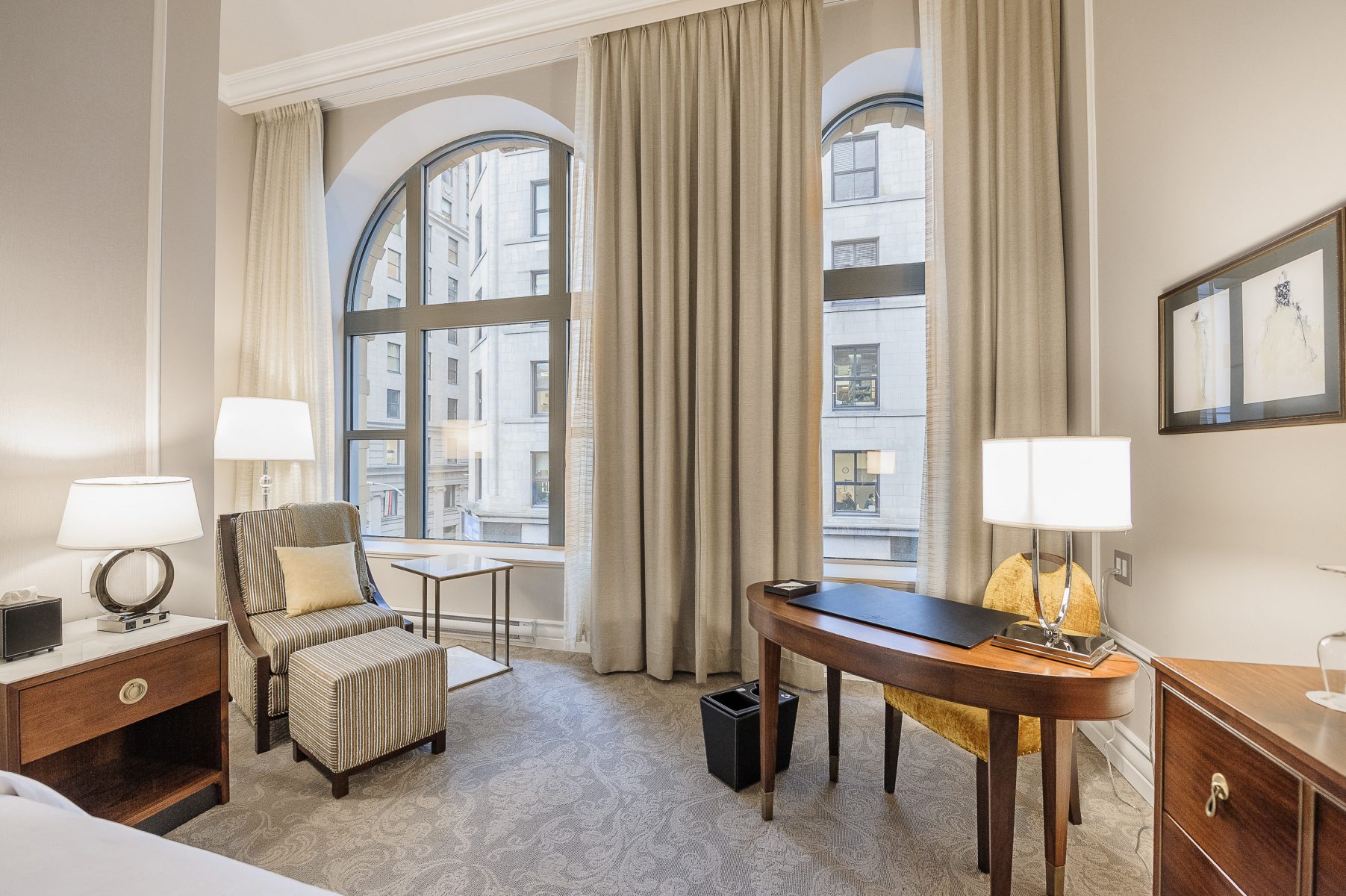

客房
客房 ©Caroline Lessard

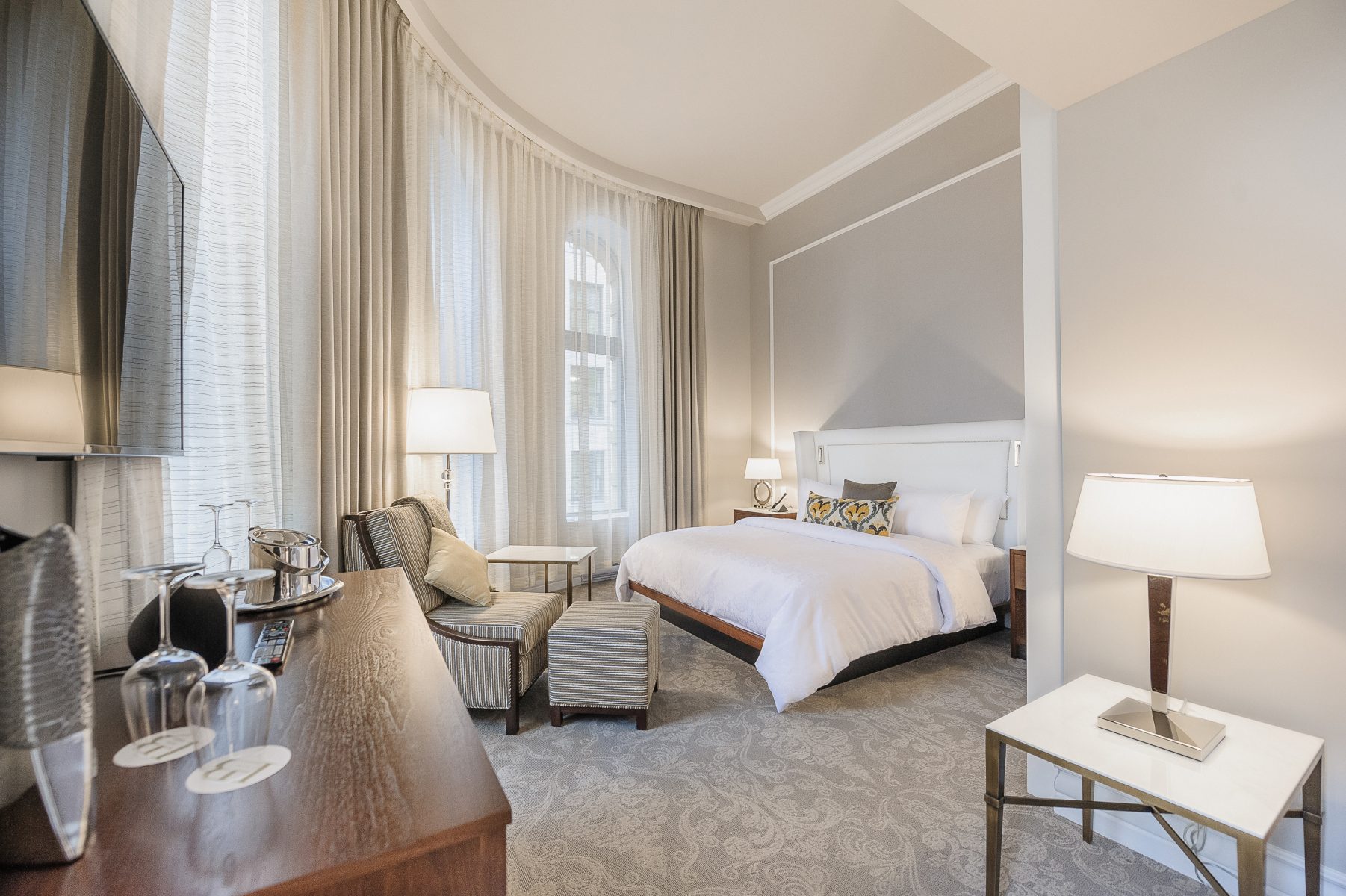

客房
客房 ©Caroline Lessard

项目数据

项目正式名称:伯克斯酒店

项目地点:加拿大 蒙特利尔

客户: Jean Salette, CEO Les Hôtels St-Martin Inc.

建筑设计与室内设计

  • NEUF architect(e)s (建筑修复与翻新)
  • Nicole Vekemans (酒店室内设计)
  • Atelier Zébulon Perron (酒店餐厅设计)
  • Aedifica architecture + design (酒店珠宝店设计)

工程:

  • Desjardins Experts Conseils (MEP)
  • Les Gicleurs ACME ltée (洒水器)
  • CPF Groupe Conseil (结构)

承包商 : Quadrax & Associés GC

项目面积 : 120 000 pi² / 11 150 m²

项目预算 :  $20M

项目摄影 : Adrien Williams, Alexandre Parent, Felix Audette, Caroline Lessard

层数 : 6 + mezzanine above grade and 2 subgrade

项目日期: 2018

Technical Sheet

Official name of the project :  Birks Hotel

Location: Montreal, Canada

Client : Jean Salette, CEO Les Hôtels St-Martin Inc.

Architects / designers :

  • NEUF architect(e)s (architecture and building restoration)
  • Nicole Vekemans (interior design of the hotel)
  • Atelier Zébulon Perron (interior design of Henri Brasserie Française)
  • Aedifica architecture + design (interior design of the Birks jewelry store)

Engineers :

  • Desjardins Experts Conseils (MEP)
  • Les Gicleurs ACME ltée (sprinklers)
  • CPF Groupe Conseil (structure)

Contractors : Quadrax & Associés GC

Area : 120 000 pi² / 11 150 m²

Budget :  $20M

Image credits : Adrien Williams, Alexandre Parent, Felix Audette, Caroline Lessard

Number of storeys : 6 + mezzanine above grade and 2 subgrade

Dates : 2018
