淡江大桥 Danjiang Bridge

感谢 扎哈哈迪德建筑事务所 的分享 | Thanks for share from Zaha hadid architects.

中国 台北 | Chinese Taipei

中科工程顾问有限公司(台)与扎哈•哈迪德建筑事务所共同成立的合资公司Leonhardt, Andra & Partner赢得了为台湾高速公路理事会设计台北淡江大桥的国际竞赛

The Sinotech Engineering Consultants and Leonhardt, Andrä & Partner joint venture with Zaha Hadid Architects has won the international competition to design the new Danjiang Bridge in Taipei for the Directorate General of Highways, Taiwan, R.O.C.

淡江大桥远景
淡江大桥效果图 ©MIR and VisualArch
淡江大桥效果图
淡江大桥效果图 ©MIR and VisualArch
淡江大桥效果图
淡江大桥效果图 ©MIR and VisualArch

淡江大桥位于流经首都台北的淡水河口,是台湾北部基础设施升级计划不可或缺的一部分。该桥将连接2号和15号高速公路、西海岸高速公路(61号公路)和巴利-新店高速公路(64号公路),从而加强社区之间的联系,并减少当地城镇中心道路上的交通流量。淡江大桥还将通过减少上游关渡大桥的拥堵,极大地改善北部沿海交通系统,并随着台北/台北港(该地区最繁忙的航运港口)的快速扩张,提高整个地区的可达性。

Located at the mouth of Tamsui River that flows through the capital Taipei, the Danjiang Bridge is integral to the infrastructure upgrading program of northern Taiwan. The bridge will increase connectivity between neighbourhoods and reduce through-traffic on roads within local town centres by linking the Highways 2 and 15, with the West Coast Expressway (Route 61) and Bali-Xindian Expressway (Route 64). By also reducing traffic from the congested Guandu Bridge upriver, the Danjiang Bridge will greatly improve the northern coast traffic system and enhance accessibility throughout the region with the rapidly expanding Port of Taipei/Taipei Harbour, the region’s busiest shipping port.

淡江大桥也将允许丹海轻轨运输(DHLRT)系统在淡水河上的延伸,连接八里区和港口与台北的公共铁路网。

淡水河口是一个自然环境两侧的城市中心淡水在东部和巴厘岛在西部。入海口作为一个休闲娱乐区正迅速受到居民和游客的欢迎,人们每天都聚集在这里观看台湾海峡日落。

斜拉桥的设计最大限度地减少了它的视觉影响,只使用一个混凝土结构桅杆,以支持920米的道路,铁路和步行甲板由钢铁制成。

The Danjiang Bridge will also allow for the extension of Danhai Light Rail Transportation (DHLRT) system over the Tamsui River to connect the town of Bali and the Port/ Harbour with Taipei’s public rail network.

The Tamsui River estuary is a natural environment flanked by the urban centres of Tamsui to the East and Bali to the west. The estuary is rapidly growing in popularity with both residents and tourists as a recreational area where people gather each day to watch the sun setting over the Taiwan Strait.

The cable-stayed bridge design minimises its visual impact by using only one concrete structural mast to support the 920m road, rail and pedestrian deck made from steel.

淡江大桥效果图
淡江大桥效果图 ©MIR and VisualArch
淡江大桥效果图
淡江大桥效果图 ©MIR and VisualArch
淡江大桥效果图
淡江大桥效果图 ©MIR and VisualArch

淡江大桥将成为世界上最长的单塔非对称斜拉桥。

桅杆的设计和工程都尽可能地细长,其位置提供了最佳的结构性能,避免妨碍河流的通航,也尽量减少从沿河的热门观景台观看日落的任何干扰。根据河口生态系统保护计划的增加,这种单一的设计也将河床的结构元素最小化。

The Danjiang Bridge will be the world’s longest single-tower, asymmetric cablestayed bridge.

The mast is designed and engineered to be as slender as possible and positioned to offer the best structural performance, avoid impeding the navigability of the river and also minimise any interference with the views of the sunset from popular viewing points along the river. This singlemast design also minimizes structural elements in the riverbed in accordance with the increased protection programs of the estuary’s ecosystems.

淡江大桥效果图
淡江大桥效果图 © MIR and VisualArch
淡江大桥效果图
淡江大桥效果图 ©MIR and VisualArch

中科集团的工程顾问公司(台)以及与扎哈•哈迪德建筑事务所(Zaha Hadid Architects)成立的合资公司Leonhardt, Andra & Partner在竞赛中获得第一名。CECI和Nippon工程顾问公司排名第二;Aecom Asia and Resources Engineering Services (Aecom Asia and Resources Engineering Services)排名第三,MAA Group和Cowi排名第四,东方咨询公司(Oriental Consultants)和太平洋工程建设公司(Pacific Engineers & Constructors)、榜华工程咨询公司(Pyunghwa Engineering Consultants)和太平洋咨询公司(Pacific Consultants)、台湾工程咨询公司(Taiwan Engineering Consultants)和Yuang Engineering Consultants并列第五。

The Sinotech Engineering Consultants and Leonhardt, Andrä & Partner joint venture with Zaha Hadid Architects placed first in the competition. CECI and Nippon Engineering Consultants placed second; Aecom Asia and Resources Engineering Services placed third, MAA Group and Cowi placed fourth, with Oriental Consultants with Pacific Engineers & Constructors and Pyunghwa Engineering Consultants and Pacific Consultants with Taiwan Engineering Consultants and Yuang Engineering Consultants placing joint fifth.

淡江大桥效果图 ©MIR and VisualArch
淡江大桥效果图 ©MIR and VisualArch

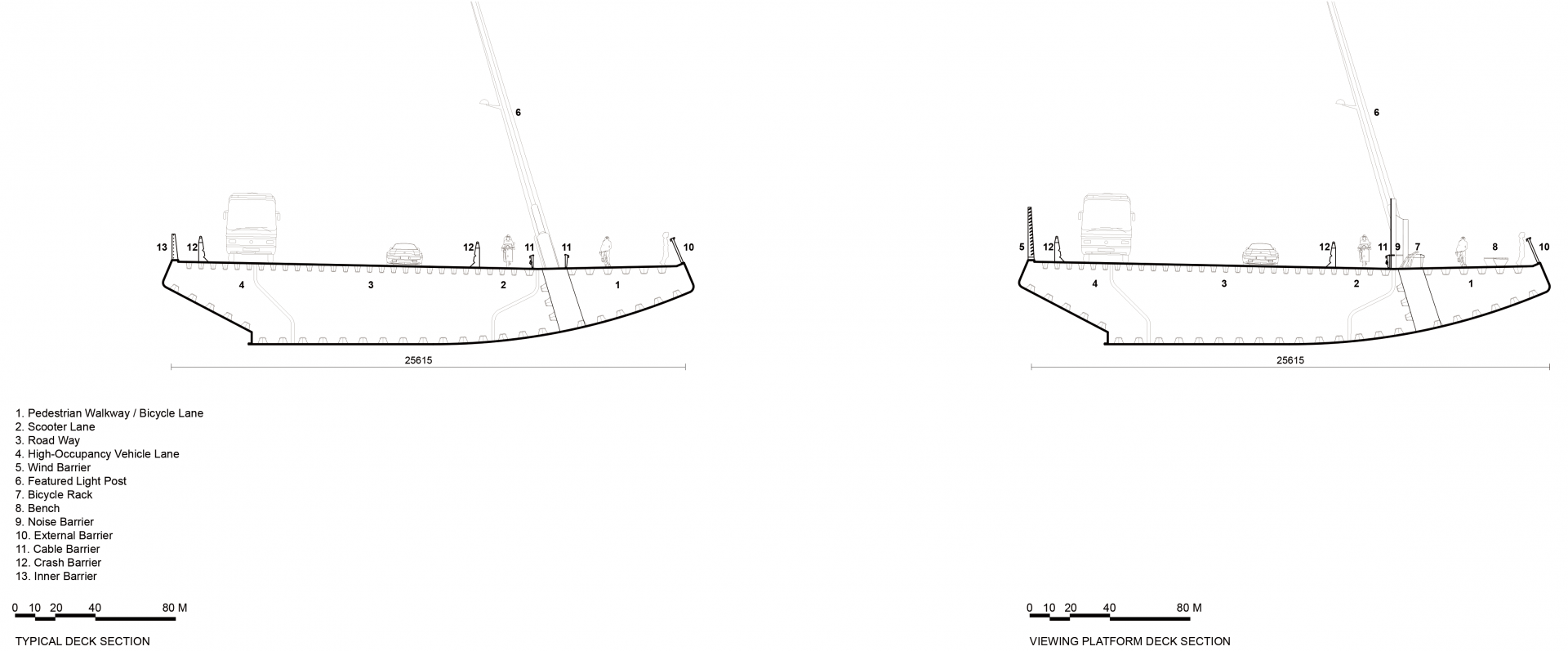

淡江大桥截面
截面图 ©Zaha hadid architects

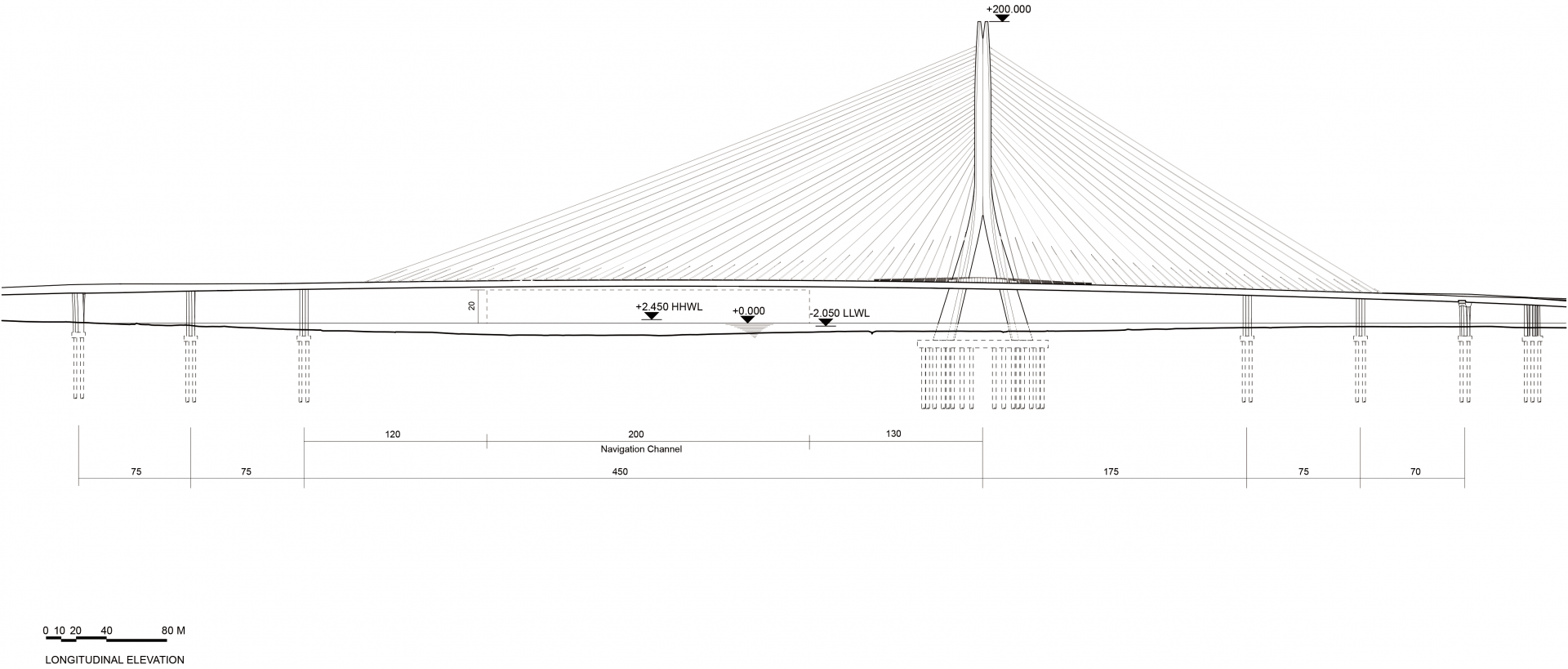

淡江大桥纵向高度平面图
纵向高度平面图 ©Zaha hadid architects

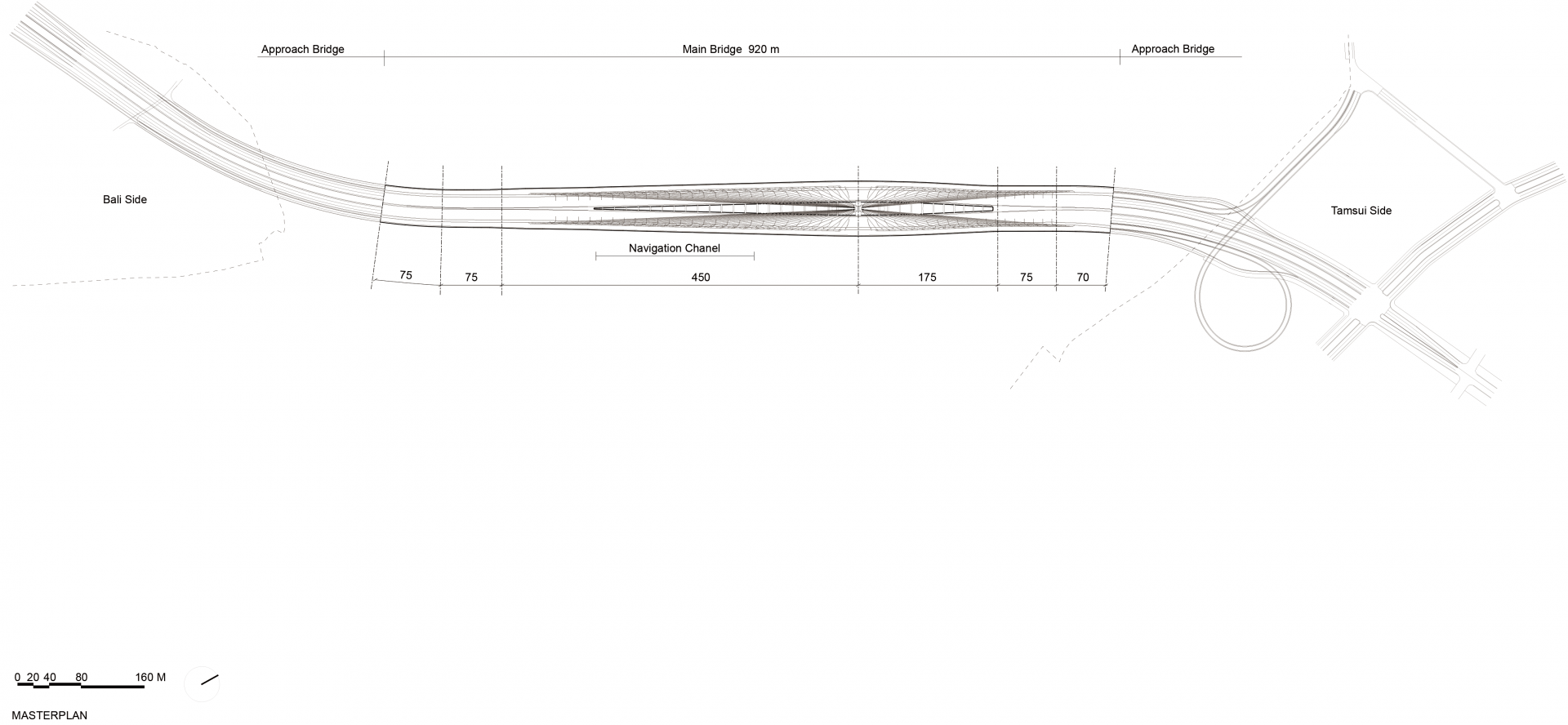

淡江大桥总体平面图
总体平面图 ©Zaha hadid architects

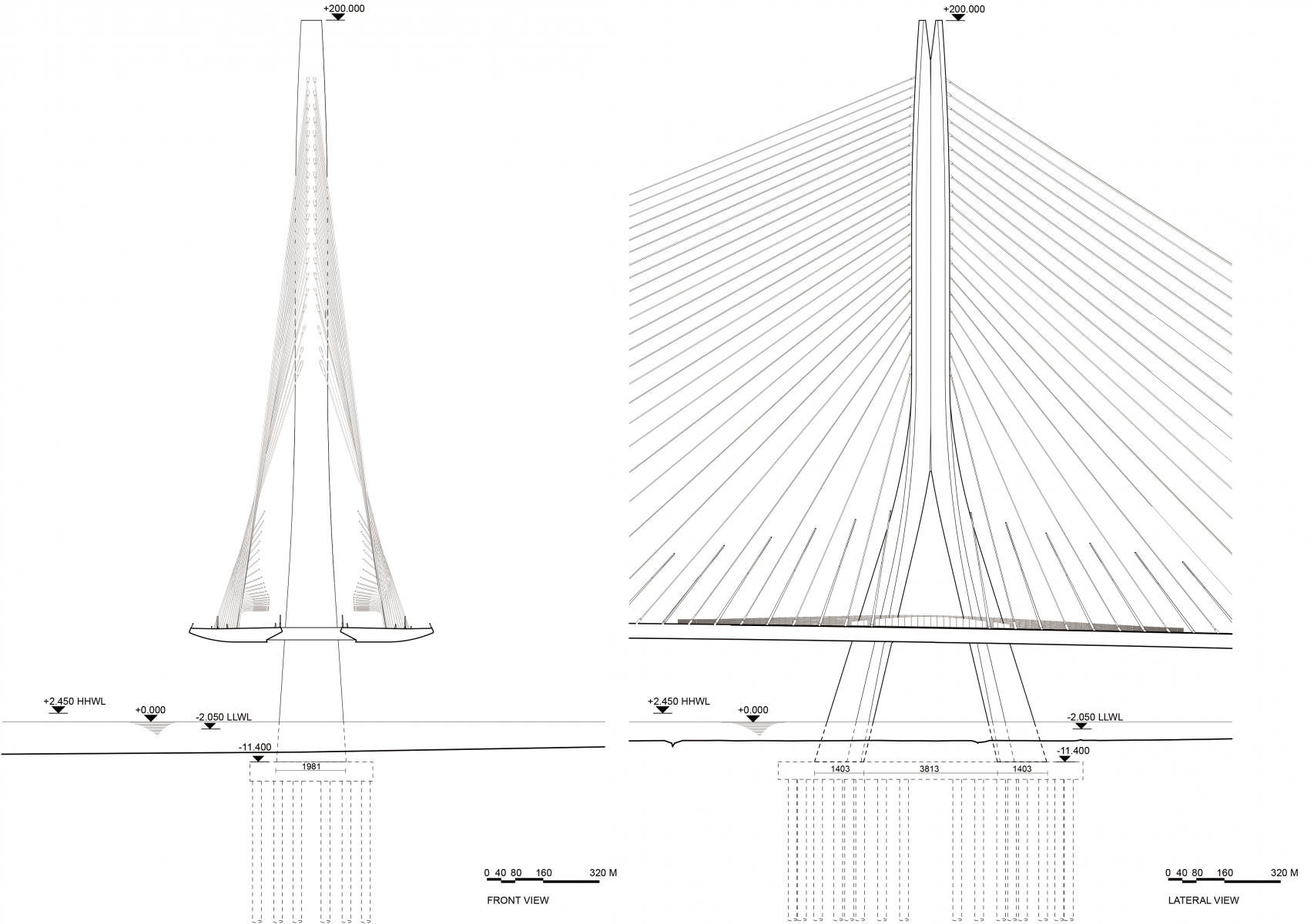

淡江大桥高度图
高度 ©Zaha hadid architects
淡江大桥平面图
平面图 ©Zaha hadid architects

建筑设计:
扎哈·哈迪德建筑事务所

设计:
扎哈·哈迪德
Patrik Schumacher

项目竞标董事:
Charles Walker
Manuela Gatto

项目竞标设计师:
Shao-wei Huang

竞标设计助理
Paulo Flores

竞标首席设计师
Saman Saffarian

竞标项目团队:
Evgeniya Yatsyuk
Paul Bart
Sam Sharpe
Silviya Barzakova
Julian Lin
Ramon Weber

交付项目总监:
克里斯蒂Ceccato

交付项目建筑师:
王绍伟黄

交付项目团队: Carlos Michel-Medina,
Chien-shuo Pai,
Julian Lin,
Elena Scripelliti

交付项目BIM支持:Paul Ehret


支承桅高:
200米

结构:
钢筋混凝土支撑桅杆与钢索支撑钢路/铁路/自行车/行人道

跨度:
450m(支承桅杆以西)
175m(支承桅杆以东)

领导结构工程咨询和合资伙伴:Leonhardt, Andrä und Partner (Leonhardt, Andrä und Partner, Beratende Ingenieure VBI AG , Germany)

本地工程顾问及合资伙伴:
中科工程顾问(中科工程顾问有限公司,台湾)

灯光设计师:
Chroma33 Architectural Lighting Design (Taiwan,
R.O.C.)

动画:
MIR和Morean(施工顺序)

效果图:MIR and VisualArch

Architect
Zaha Hadid Architects

Design
Zaha Hadid
Patrik Schumacher

Competition Project Directors
Charles Walker
Manuela Gatto

Competition Project Architect
Shao-wei Huang

Competition Design Associate
Paulo Flores

Competition Lead Designer
Saman Saffarian

Competition Project Team
Evgeniya Yatsyuk
Paul Bart
Sam Sharpe
Silviya Barzakova
Julian Lin
Ramon Weber

Delivery Project Director
Cristiano Ceccato

Delivery Project Architect
Shao-wei Huang

Delivery Project Team
Carlos Michel-Medina,
Chien-shuo Pai,
Julian Lin,
Elena Scripelliti

Delivery Project BIM Support
Paul Ehret

Height of Supporting Mast
200m

Structure
Reinforced concrete supporting mast with steel cables supporting steel road/rail/cycle/pedestrian deck

Spans
450m (to the West of the supporting mast)
175m (to the East of the supporting mast)

Lead structural engineering consultancy and JV Partner
Leonhardt, Andrä und Partner (Leonhardt, Andrä und Partner, Beratende Ingenieure VBI AG , Germany)

Local engineering consultants and JV Partner
Sinotech Engineering Consultants (Sinotech Engineering Consultants, Ltd, Taiwan)

Lighting designer
Chroma33 Architectural Lighting Design (Taiwan)

Animation
MIR and Morean(construction sequence)

Renders
MIR and VisualArch
