PRATIC 2.0

感谢 GEZA – Gri e Zucchi Architettura srl 的分享 | Thanks for share from GEZA – Gri e Zucchi Architettura srl .

意大利 法加尼亚 | Fagagna, Italy

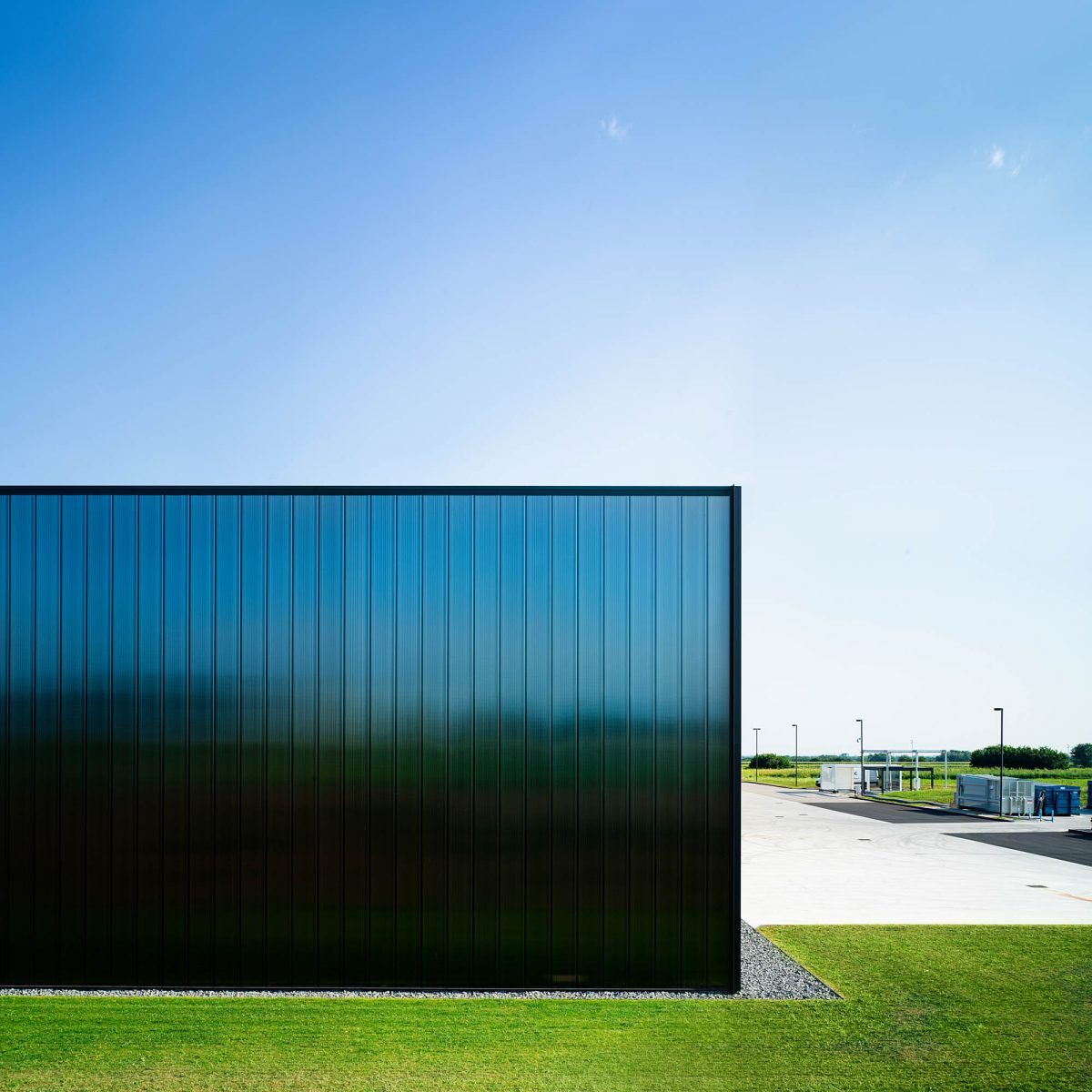

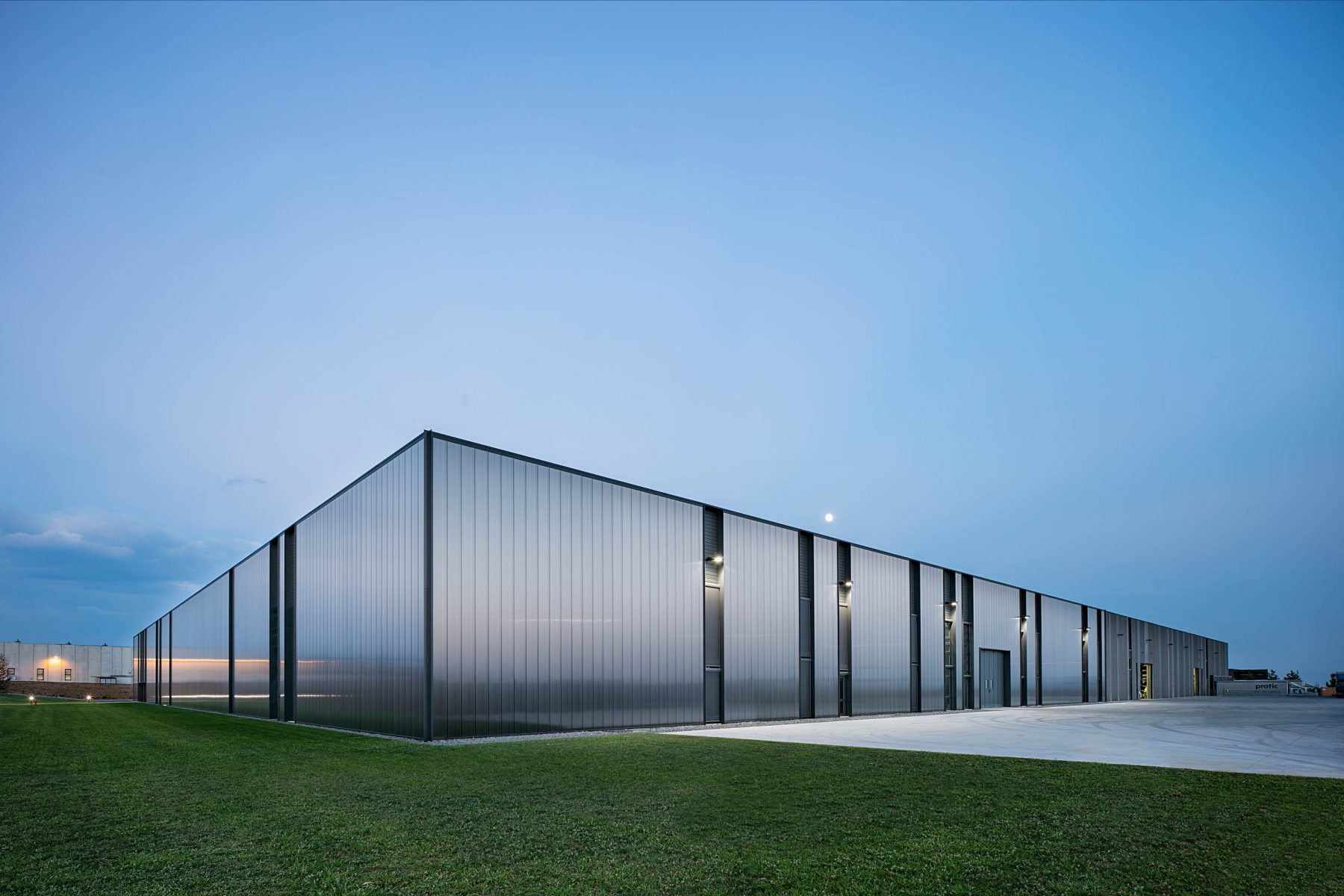

Pratic 工厂设计:折射出来的冷暖色立面根据一天的时间和天气条件的连续变化
折射出来的冷暖色立面根据一天的时间和天气条件的连续变化 ©Javier Callejas

现实的总部与天地对话,有光有影。 The Pratic Headquarters dialogue with the earth and the sky, with light and shadow.

生产和定向功能与景观有关,没有模仿。这些空间的设计目的是在室内外之间建立一种稳定的关系。因此Pratic成为景观的地标。

Pratic Spa是一家太阳能遮阳系统制造商,是一个工业基地,在这里,生产的建筑成为景观的一部分,并加强其身份。

干预包括并整合了工业体量和广阔的开放空间。建筑与大地和天空有关,有光也有影。生产性和方向性的功能与没有模仿的景观相关,空间的设计目的是在室内外建立持续的对话。建筑因此成为一个舒适和功能的地标。该类型学工厂包括办公楼、陈列室、研究和创新实验室、生产空间、绘画和仓库、员工健康区。所有这些功能都通过开放空间和停车场的设计联系在一起,这些开放空间由沿着道路的堤防模型定义,由专门用于放松和会议的空间定义,由景观视野的控制定义。它是一座与自然景观保持不断联系的工业建筑。

总部的建设分两个阶段:第一个在2011年,随后在2018年扩建。

The productive and directional functions relate to the landscape without mimicry. The spaces are designed with the aim of establishing a constant relationship between interior and exterior. Thus Pratic becomes the landmark of the landscape.

The Pratic Spa, a manufacturer of solar shading systems, is an industrial site where the architecture for production becomes a contribution to the landscape and reinforces its identity.

The intervention involves and integrates industrial volumes and vast open spaces. The buildings are related to the earth and the sky, with light and shadow. The productive and directional functions relate to the landscape without mimicry, and the spaces are designed with the aim of establishing a constant dialogue between inside and outside. The building thus becomes a comfortable and functional landmark. The typological plant includes an office building, a showroom, research and innovation laboratories, spaces for production, painting and warehouses, a wellness area for employees. All these functions are linked by the design of open spaces and parking lots, defined by the embankments modeled along the roads, by the spaces dedicated to relaxation and meeting, by the control of the views on the landscape. It is an industrial building in constant relation with the natural landscape.

The headquarters were built in two phases: the first in 2011 and the subsequent expansion in 2018.

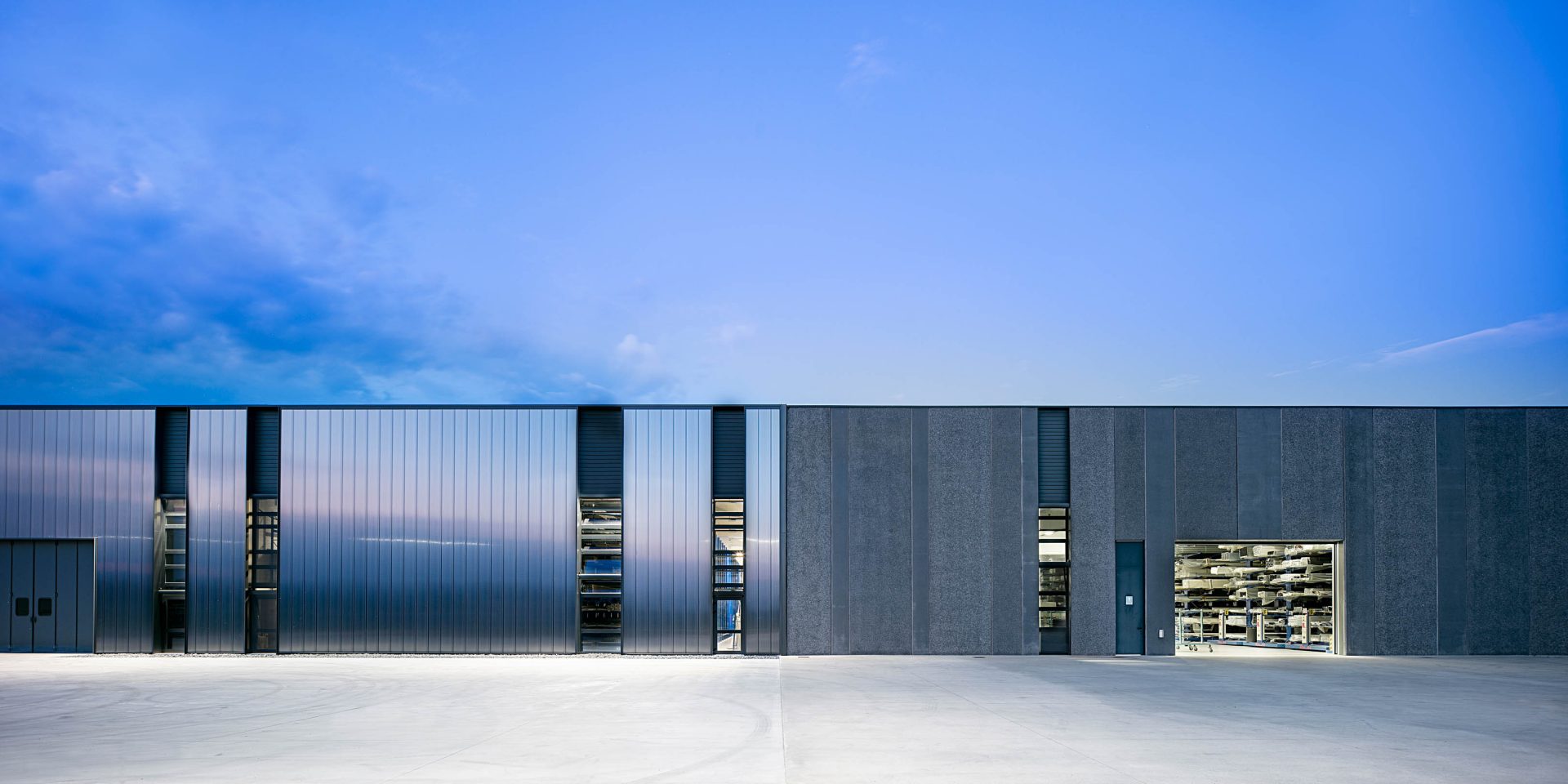

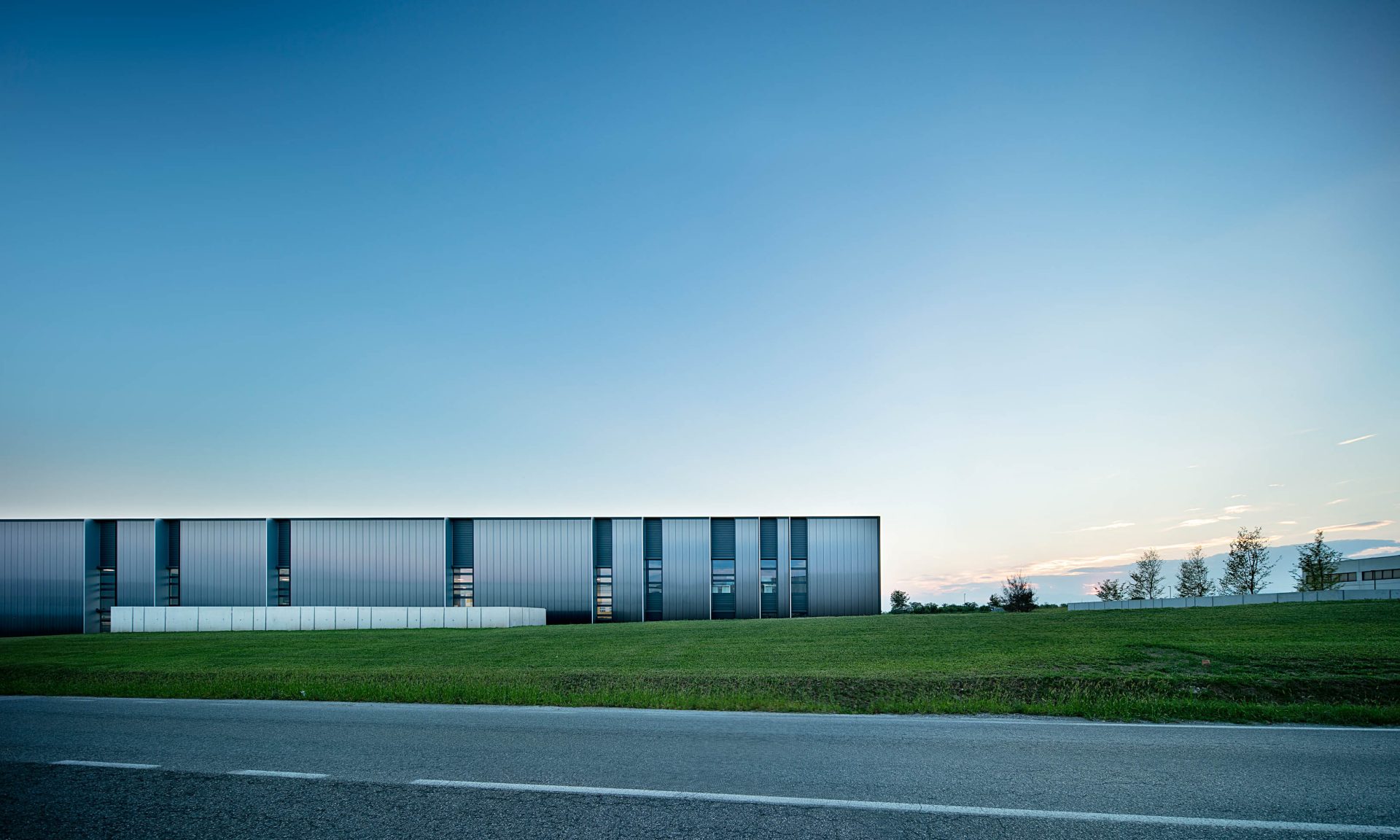

Pratic 工厂设计:面板的反射也确保了立面的连续颜色变化:根据一天的时间和光线强度的变化,建筑可能呈现出黑色、金色、光泽和无限的变化
面板的反射也确保了立面的连续颜色变化:根据一天的时间和光线强度的变化,建筑可能呈现出黑色、金色、光泽和无限的变化 ©Javier Callejas

PRATIC 2 – 生产综合体扩建(2018) PRATIC 2 . Production complex enlargement (2018)

在它成立几年后,Pratic翻了一番。同样的客户,同样的架构师,同样的价值观:简单和高效。

A few years after its inauguration, the Pratic doubles.Same customers and same architects who believe in the same values: simplicity and efficiency.

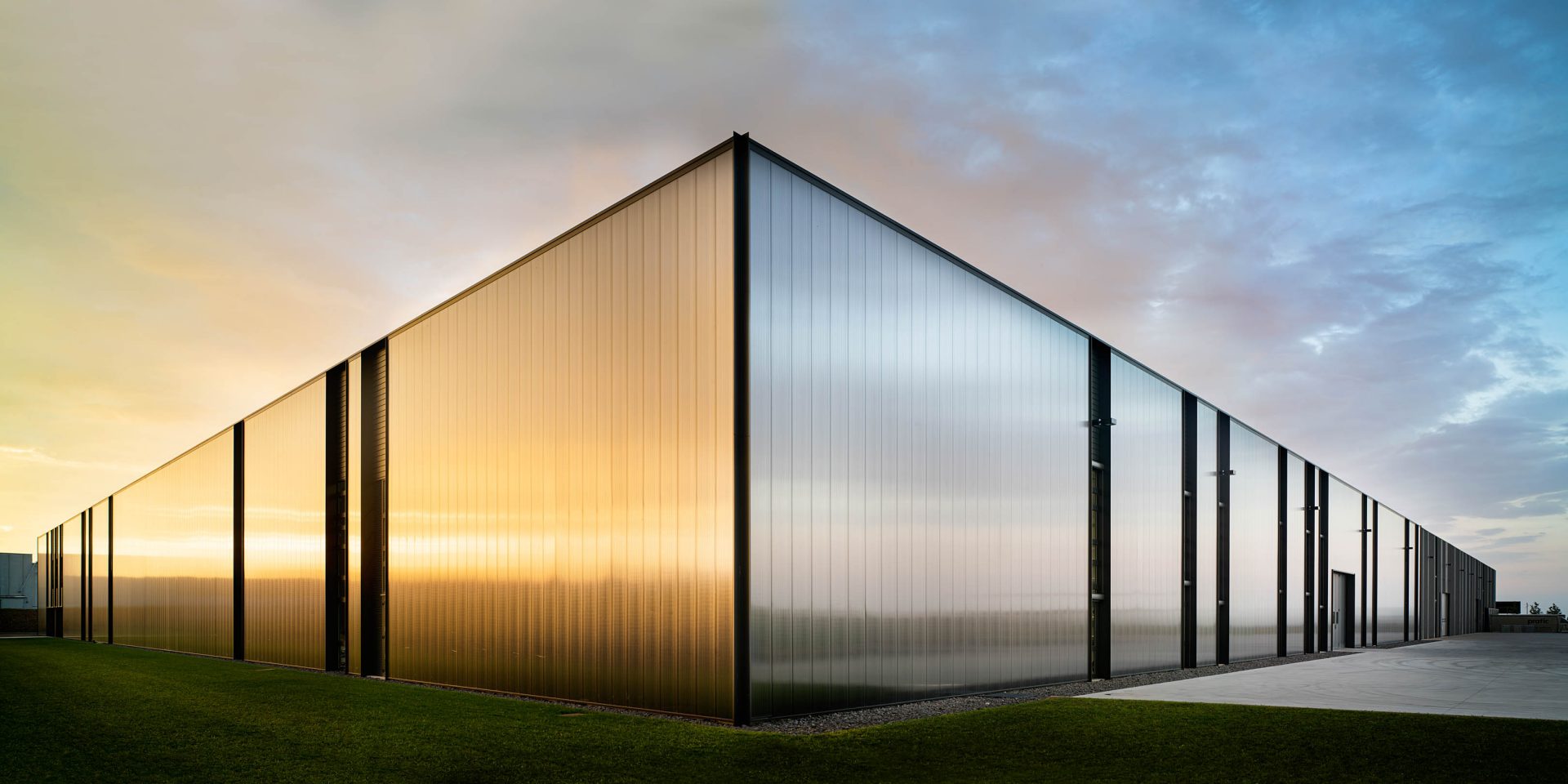

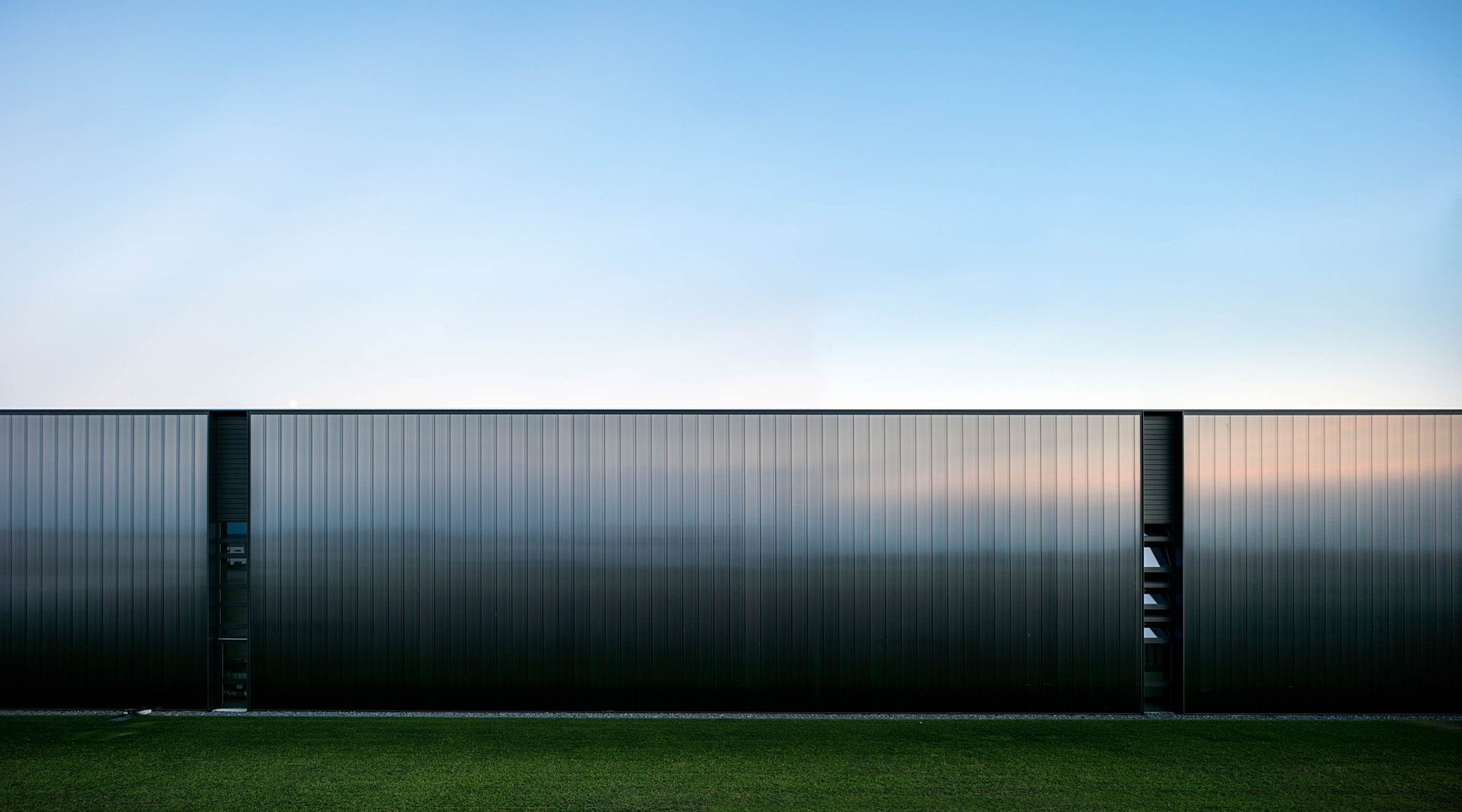

立面板由两种不同类型的聚碳酸酯组合而成:背面是一种不透明的化合物,阻碍光线通过,而正面是“冷色”
立面板由两种不同类型的聚碳酸酯组合而成:背面是一种不透明的化合物,阻碍光线通过,而正面是“冷色”©Javier Callejas

Pratic的扩建是一项复杂的工程,尽管它明显表现出了一个基本特征。这是一栋面积约9000平方米的矩形建筑,完成并改进了2011年建成的现有生产部门。功能方案几乎与之前的建筑相同:办公、服务、食堂、健康区、生产、仓库、喷漆车间,以及停车场和服务区都包含在严格的开放空间设计之中。

The enlargement of the Pratic, built in adherence to the industrial building of the first lot, is a complex project, despite apparently showing an essential character. This is a rectangular building of about 9.000 sqm that completes and improves the existing production department built in 2011. The functional program is almost the same of the previous building: offices, services, canteen, wellness area, production, warehouses, painting plant, as well as parking areas and service areas included in the rigorous design of the open spaces.

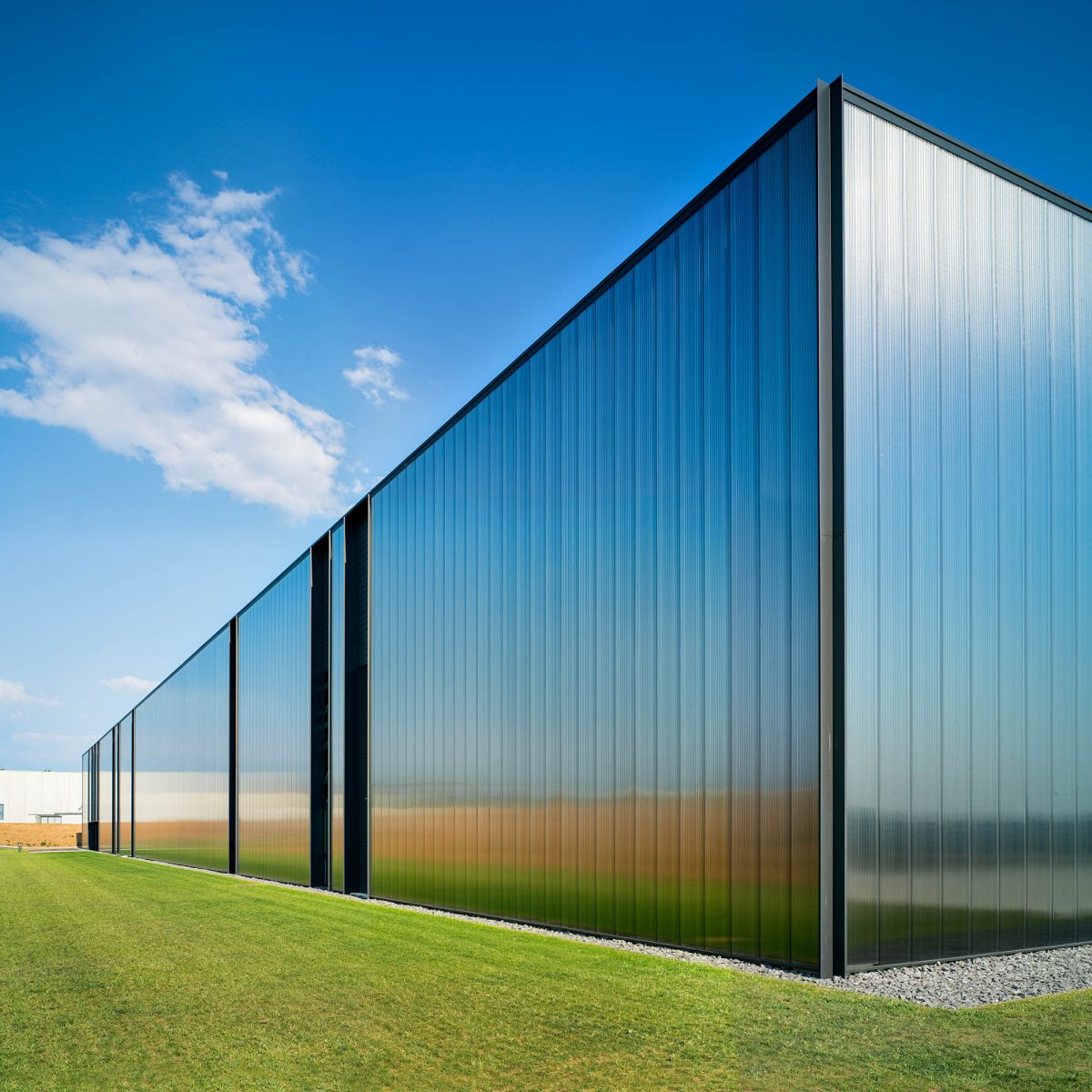

承重结构完全隐藏在包层系统的后面
承重结构完全隐藏在包层系统的后面 ©Javier Callejas

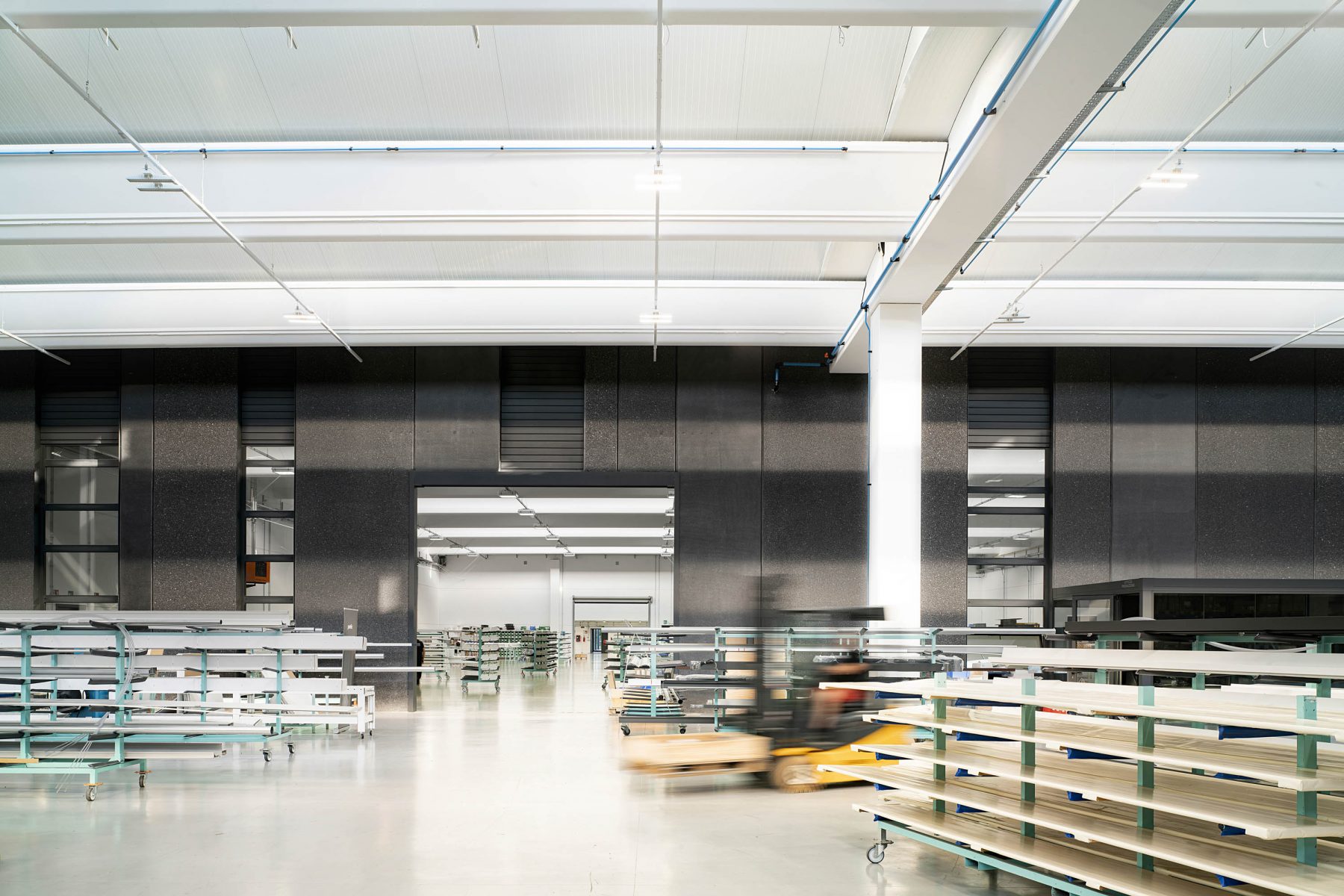

现有的立面(2011年第一次干预)现在在扩大内部
现有的立面(2011年第一次干预)现在在扩大内部 ©Javier Callejas

新建筑由两个简单的元素组成:窗户赋予的节奏,重复并声明与现有立面的连续性,以及反射的表皮,融合了天空中的新体量。第一个地块呈黑色,颗粒状,似乎从地面升起,将建筑固定在原地;第二个地块,总是黑色的,但反射和彩虹色,反映景观和光线的图像总是不同的,由于天气的变化。第一个是“沉重”和永恒,寻求永恒,第二个是“轻”和多变,随时准备溶解在天空:建筑完成了它的蜕变。

The new building consists of two simple elements: the rhythm given by the windows, which repeats and declares continuity with the existing facade, and the reflecting skin, which dissolves the new volume in the sky. The first lot, black and grainy, seems to arise from the ground, settling the building in place; the second lot, always black but reflective and iridescent, mirrors the landscape and the light with images that are always different due to weather variability. The first one is “heavy” and permanent, in search of eternity, the second one is “light” and changeable, ready to dissolve in the sky: the building completed the molt of its skin.

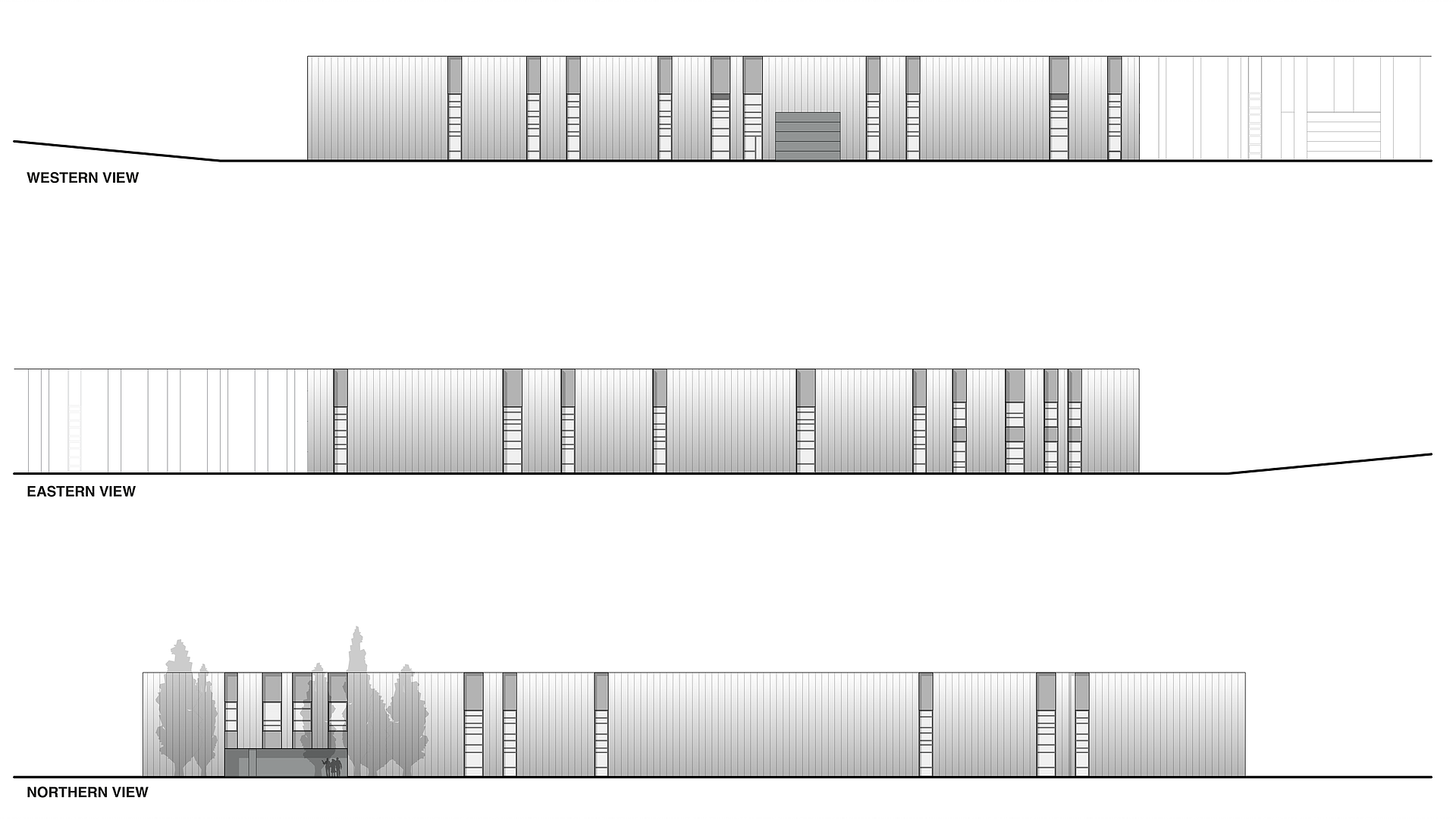

立面图
立面图 ©GEZA – Gri e Zucchi Architettura srl
聚碳酸酯面板是定制的,以便当从远处观察时获得反射正面,当近距离观察时获得“深”的反射正面
聚碳酸酯面板是定制的,以便当从远处观察时获得反射正面,当近距离观察时获得“深”的反射正面©Javier Callejas

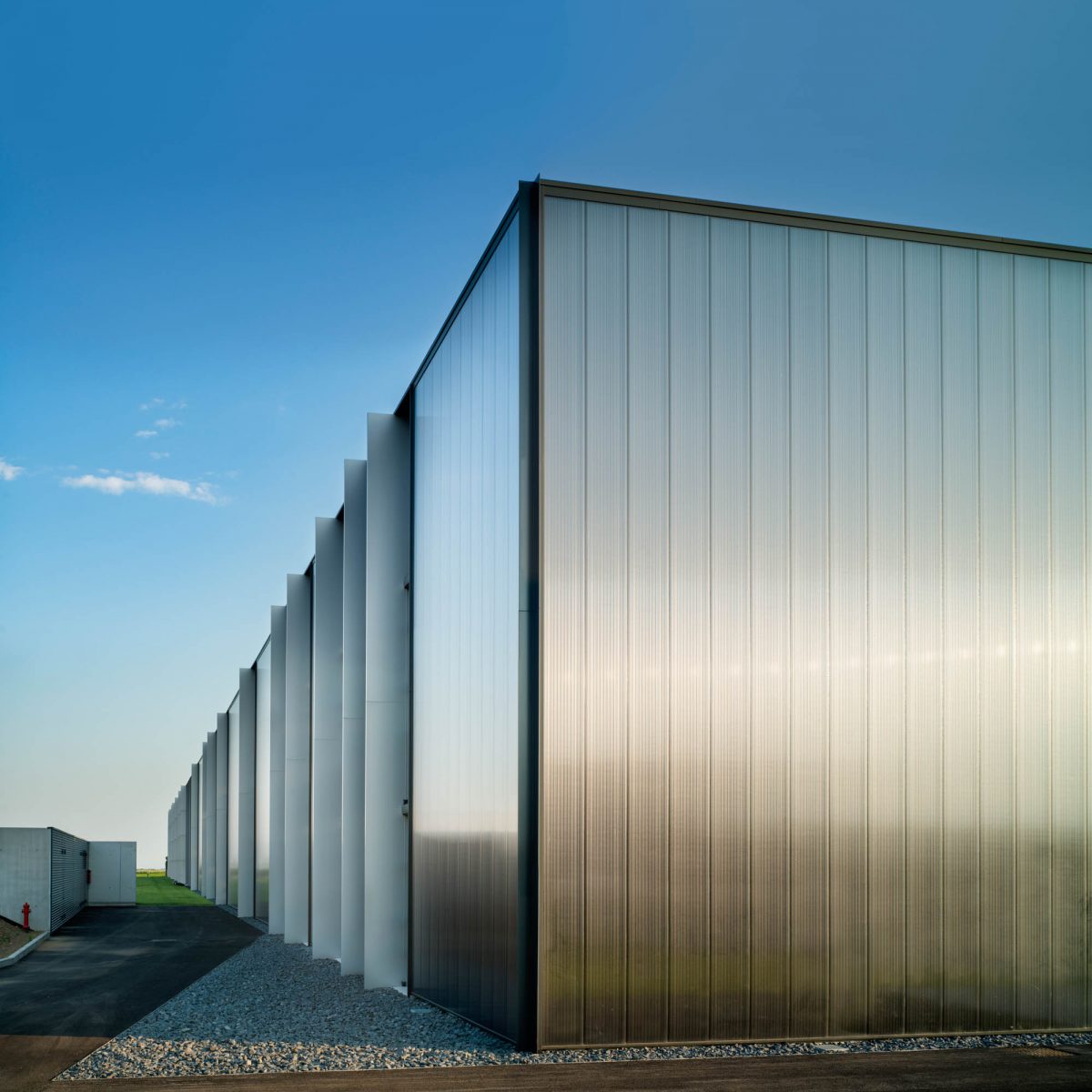

立面由4厘米厚的聚碳酸酯板组成,10米高
立面由4厘米厚的聚碳酸酯板组成,10米高 ©Javier Callejas

立面由单一材料组成,尺寸独特:4厘米厚的聚碳酸酯面板,约10米高,固定在预制混凝土结构上。聚碳酸酯面板是定制的,以获得一个反射立面时,从远处看和“深”时,密切观察。面板由两种不同类型的聚碳酸酯组合而成:背面是一种不透明的化合物,阻碍光线通过,而正面是“冻结”的。这样,承重结构完全隐藏在覆层系统后面,新立面的垂直性与现存建筑的黑色混凝土面板形成了有趣的对话。从远处看,建筑反射出天空,被巨大的玻璃板包裹,而近距离看,它看起来“更轻”,保持着与前存在的对话。面板的反射也确保了立面的连续颜色变化:根据一天的时间和光线强度的变化,建筑可能呈现出黑色、金色、金属色、不透明、光泽、无限变化。

The facade consists of a single material, of a unique size: a 4 centimeters thick polycarbonate panel, about 10 meters high, fixed to prefabricated concrete structure. The polycarbonate panels are customized in order to obtain a reflecting facade when seen from afar and “deep” when observed closely. The panels consist of two different types of polycarbonate combined together: the rear side has an opaque compound which impedes the light to pass through, while the front is “frozen”. In this way the load-bearing structure is completely hidden behind the cladding system and the verticality of the new facade sets up an interesting dialogue with the black concrete panels of the existent building. From afar the building reflects the sky and appears cladded by huge glass plates, while close up it looks “lighter”, maintaining a dialogue with the pre-existence. The mirroring of the panels also ensures a continuous color variation of the facades: depending on the time of the day and varying in light intensity the building may appear black, golden, metallic, opaque, glossy, infinitely variable.

窗户的节奏重复,并与现有的立面( PRATIC 1.0 )保持连续性
窗户的节奏重复,并与现有的立面( PRATIC 1.0 )保持连续性 ©Javier Callejas

整个聚落都包含在景观和开放空间的建筑设计中。“改型堤防”的设计中包含了休闲场所、步行街和停车场,在道路和入口道路上插入了微妙的坡度变化。这样,项目以一种清晰的方式插入地面,突出了领土的形状和几何形状。该建筑表明,工业建筑可以增加景观的价值,提高工作场所的质量。这是一个重新思考建筑和自然之间关系的好机会,把人放回到中间。

The entire settlement is included in the architectural design of the landscape and open spaces. Places designed for relaxation, pedestrian paths and parking lots are enclosed in the design of the “modified embankments” that insert subtle variations of slope with respect to the roads and access roads. In this way, the project is inserted in the ground in a clear way, highlighting the shape and geometry of the territory. The building demonstrates that industrial architecture can add value to the landscape and improve the quality of the workplace. This is a great opportunity to rethink the relationship between architecture and nature, putting man back in the middle.

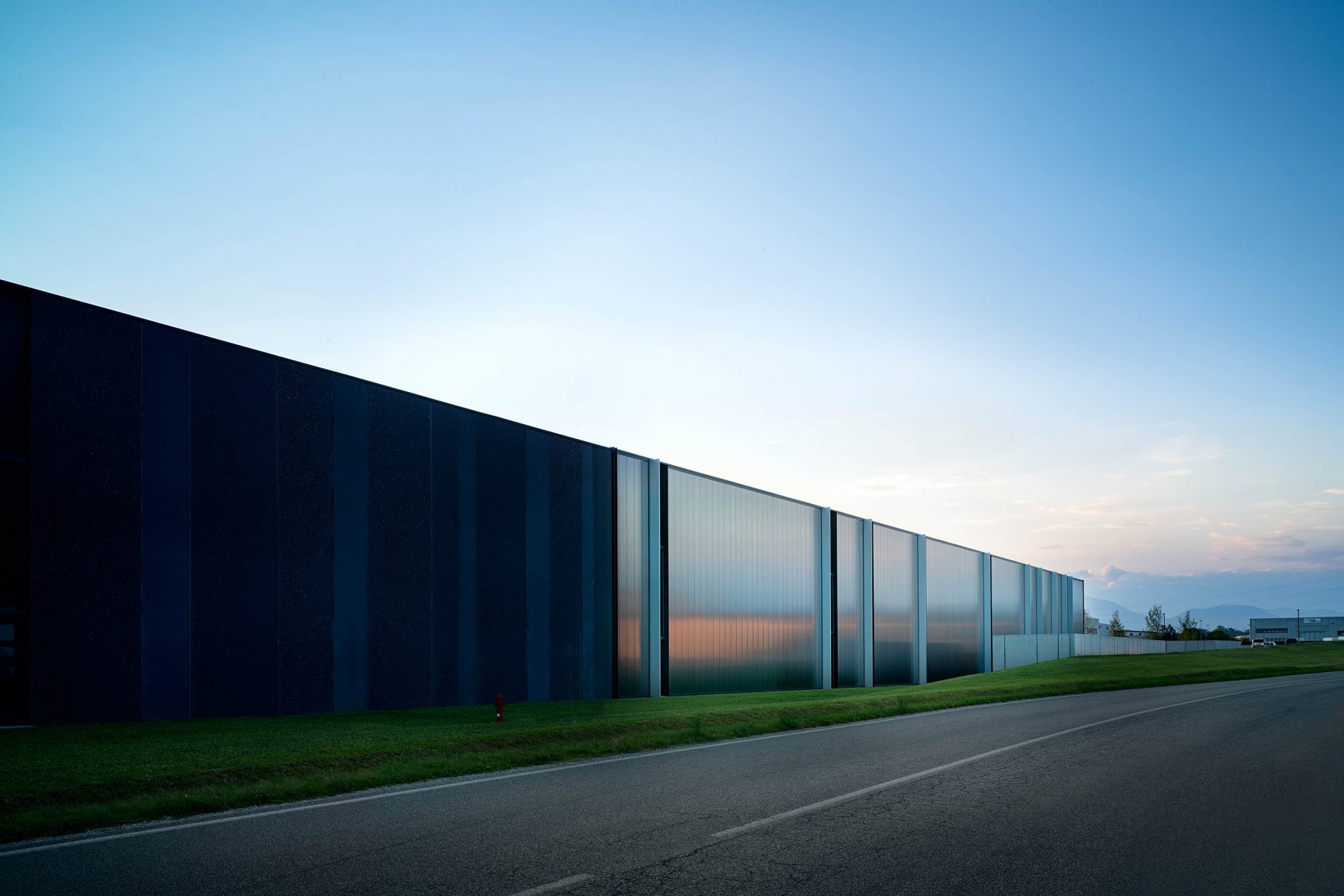

混凝土立面向北“溶解”成为一个反射立面
混凝土立面向北“溶解”成为一个反射立面 ©Javier Callejas

PRATIC 1 办公室及生产综合大楼(2011)PRATIC 1 . Offices and production complex (2011)

毗邻乌迪内至斯皮林贝戈的省道。干预主要由一个平行六面体体块组成,其表面约为9000平方米,容纳了主要的生产核心,第二个体块约为1000平方米,与第一个体块相邻,但为了与高速公路保持一致而旋转,用于办公室。

The complex placed adjacent to the provincial highway that leads from Udine to Spilimbergo. The intervention is composed principally by a parallelepiped volume with a surface of approximately 9.000 sqm that houses the main productive core and a second volume of about 1.000 sqm placed adjacent to the first but rotated in order to align with the highway is dedicated to the offices.

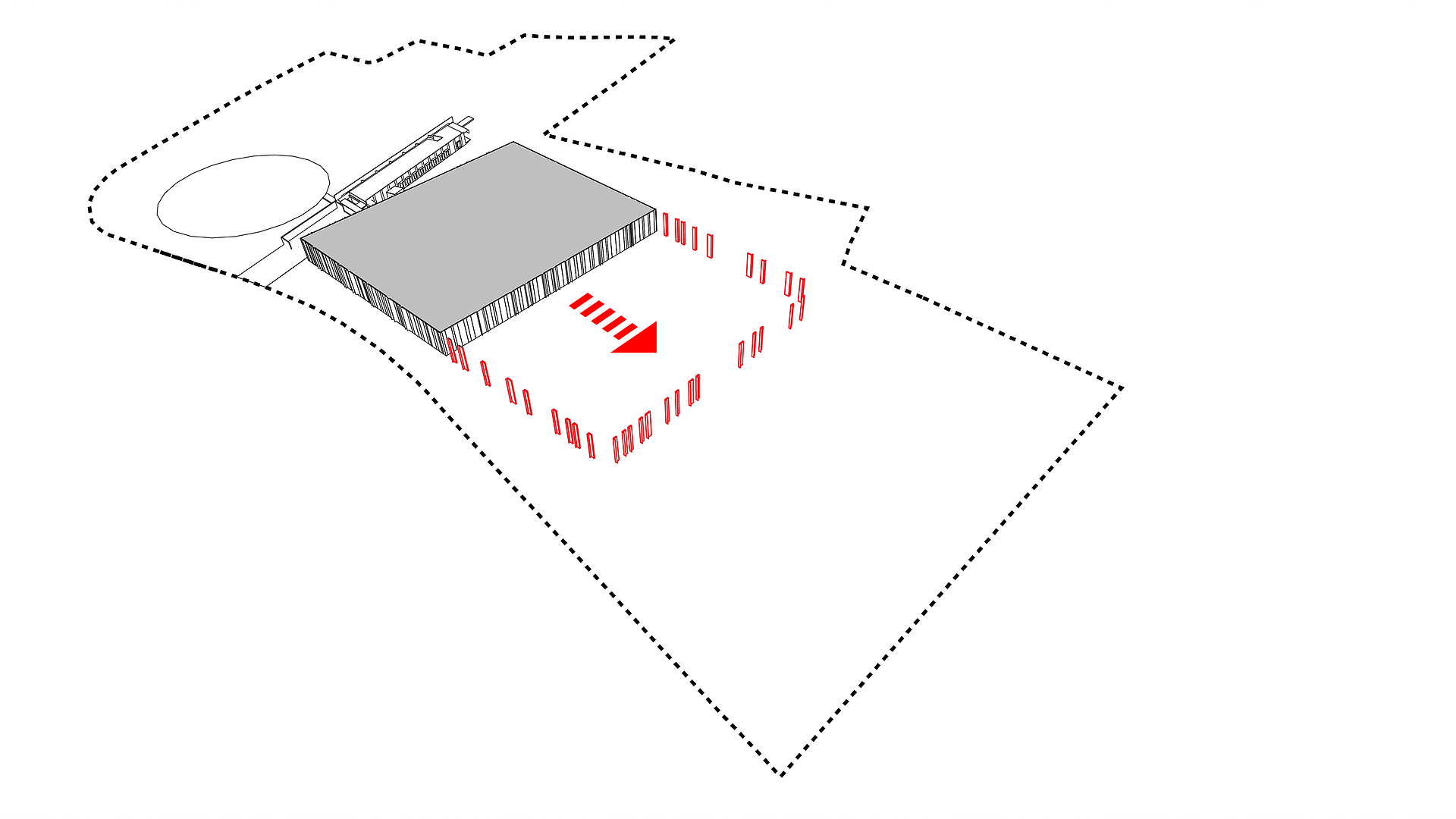

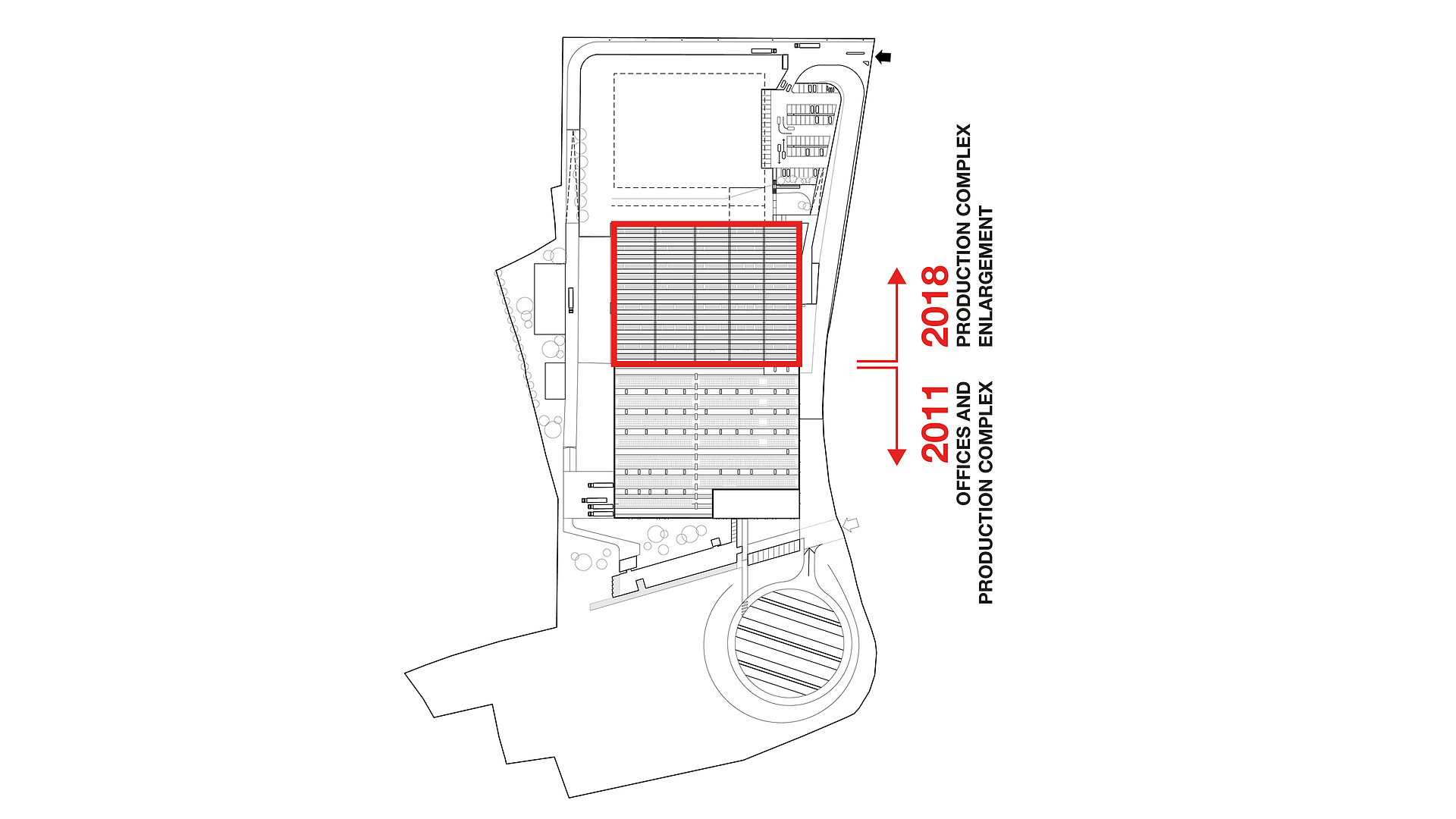

场地 ©GEZA – Gri e Zucchi Architettura srl

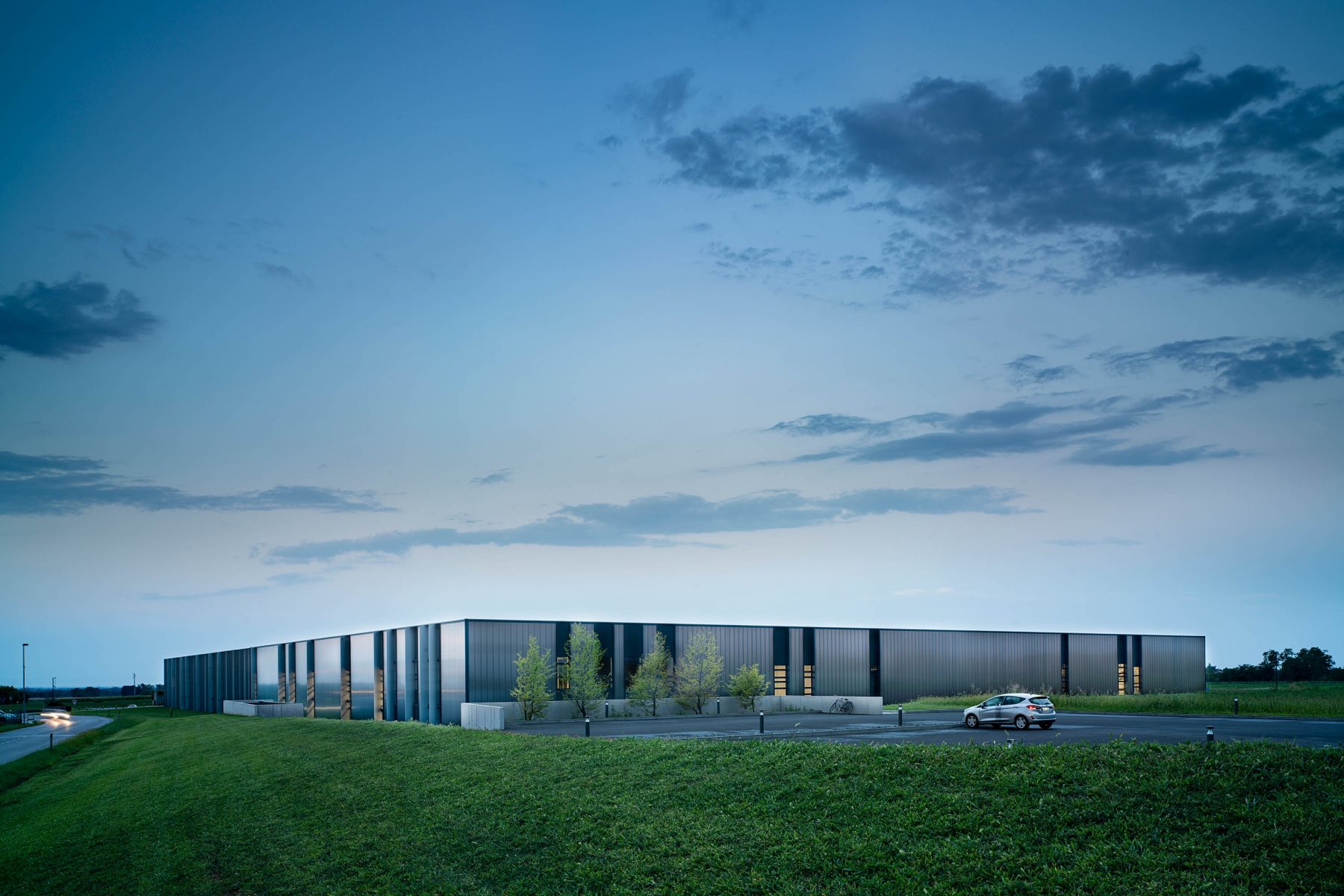

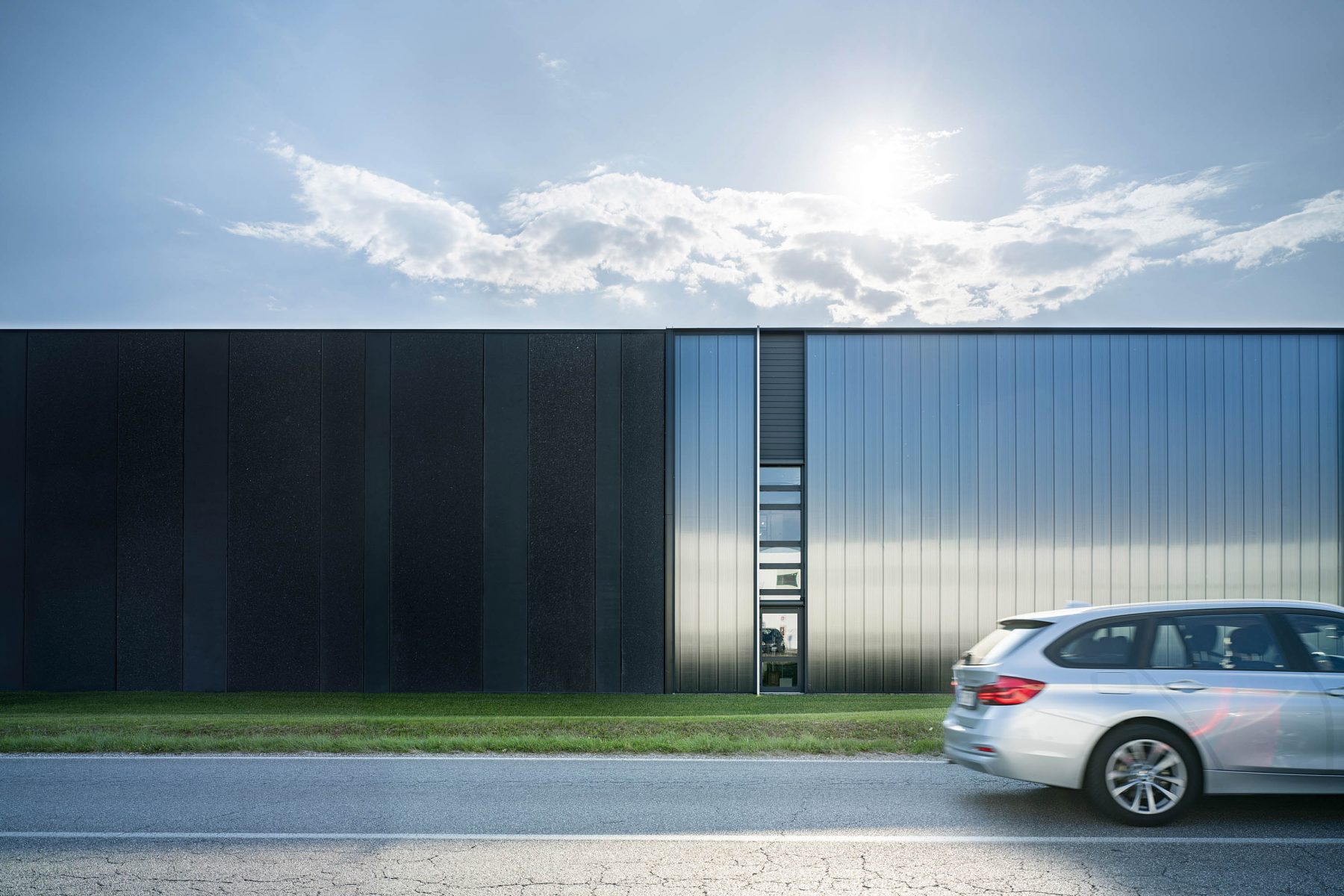

第一个地块呈黑色和颗粒状,看起来像是从地面上升起的,第二个地块总是黑色的,但具有反射性和彩虹色彩,用因天气条件而总是不同的图像来反映景观和光线
第一个地块呈黑色和颗粒状,看起来像是从地面上升起的,第二个地块总是黑色的,但具有反射性和彩虹色彩,用因天气条件而总是不同的图像来反映景观和光线 ©Javier Callejas

该区域位于城镇的工业区,与周围的农业景观紧密相连,并由北部的山景构成。

The area, anchored in the industrial zone of the town, is also intimately tied to the surrounding agricultural landscape and is framed at north by the mountainscape.

建筑充满了强烈的简约欲望
建筑充满了强烈的简约欲望 ©Javier Callejas

该项目充满了对简单性的强烈渴望。办公室的体量甚至对那些在高速公路上开车经过的人来说都是一个引人注目的标志,它试图在静止和运动的概念之间建立一种对话。生产核心更明显的垂直性的特点是由交替的玻璃表面和不同宽度的实心板控制的条纹立面,这些实心板的高度总是10米。不同尺寸的黑色大理石和黑色水泥构成了面板的表面,使不同的立面在阳光、阴影和不断变化的大气条件的相互作用下充满活力。

The project is infused with a strong desire for simplicity. The volume housing the offices becomes a striking sign even to those driving by on the highway, one that seeks to establish a dialogue between the concepts of stasis and movement. The production core’s more pronounced verticality is characterized by a striated facade dominated by alternating glazed surfaces and solid panels of diverse widths that are always ten meters in height. The differing dimensions of black marble stone and dark cement that make up the finish of the panels allow for a varied facade alive with the interplay of sunlight, shadow and changing atmospheric conditions.

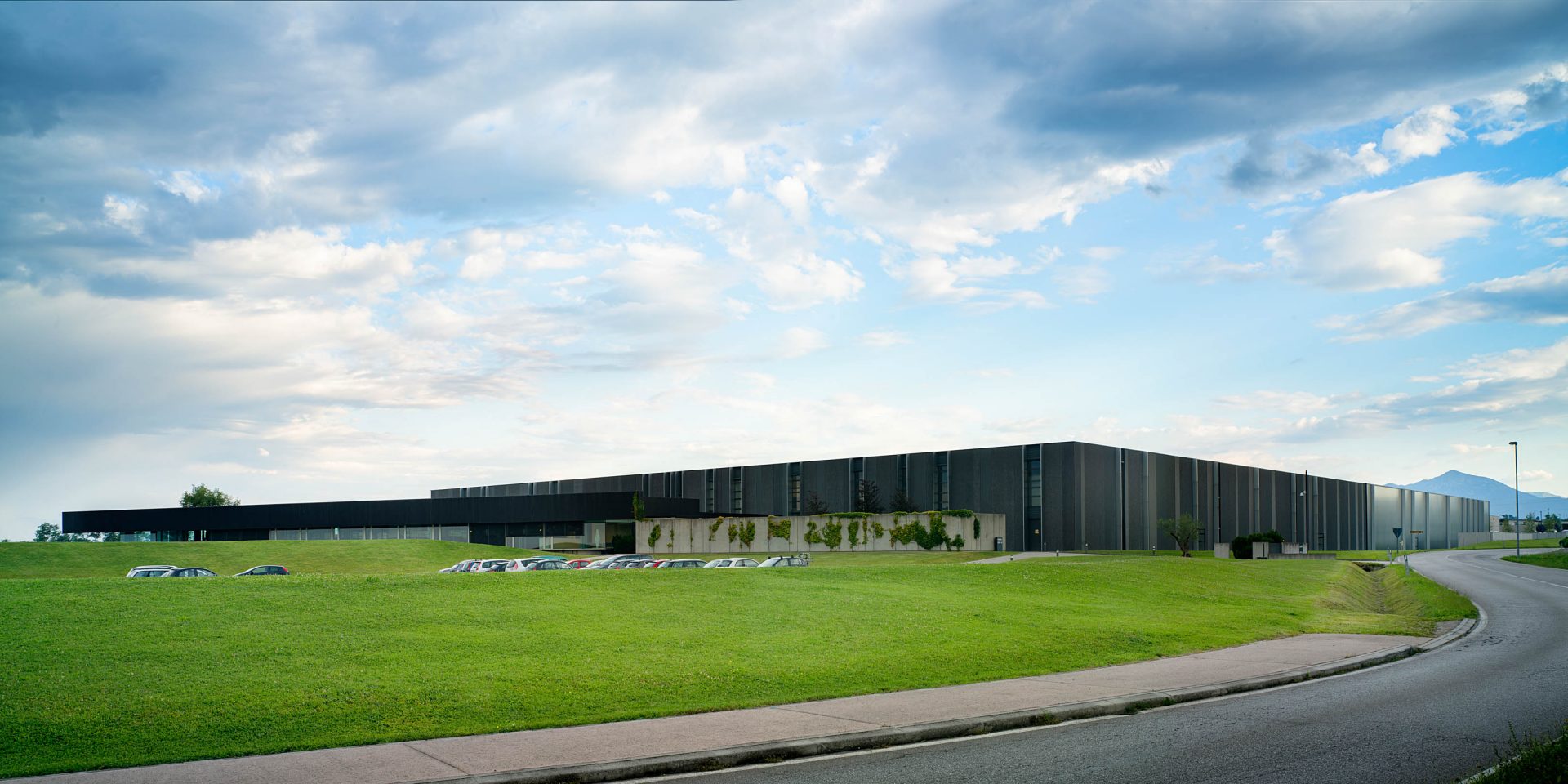

Pratic 1 (2011) & Pratic 2 (2018)
Pratic 1 (2011) & Pratic 2 (2018) ©Javier Callejas

南侧的办公室核心由一根巨大尺寸(约80米长)的深色混凝土梁保护,它在更大的尺度上突出了项目的某些元素的水平性。平行于地面的横梁突出在建筑的外围,似乎表明了它与景观之间的对立。它在玻璃立面上的反射产生了一个巨大的“浮动阴影”,通过调节工作空间内的温度来发挥气候功能。

The office core is protected on the south side by a dark concrete beam of grand dimensions (approximately 80 meters in length) that highlights at a larger scale the horizontality of certain elements of the project. The beam, parallel to the ground, projects beyond the building’s perimeter as if to indicate a confrontation between itself and the landscape. Its reflection on the glazed facade yields a great “floating shade” that serves a climatic function by mediating temperature within the work spaces.

聚碳酸酯面板是定制的,以获得一个反射立面
聚碳酸酯面板是定制的,以获得一个反射立面 ©Javier Callejas

这种简单性甚至可以通过项目与周围环境的相互作用来理解:耕地向综合体的南侧和西侧开放,将其与景观融为一体。两个主要建筑横跨花园,这是一个半私人的区域,协调了生产核心和行政管理。空间的物质性和自然性打破了办公核心的流动性,从而在自然和人之间创造了更亲密的关系。预留给车辆的区域位于与高速公路相对较低的环形区域内,以缓冲这对项目的视觉影响。

This simplicity can even be understood in terms of the project’s interaction with the surrounding context: the cultivated terrain opens towards the southern and western fronts of the complex, merging it with the landscape. The two main buildings straddle the garden, a semi-private area that reconciles the production core with that of the administration. The materiality and nature of the space interrupts the fluidity of the office core, thus creating a more intimate relationship between nature and man. The area reserved for vehicles is situated within a circular perimeter slightly buried in respect to the highway in order to buffer the visual impact this has on the project.

新建筑由两个简单的元素组成:窗户赋予的节奏,重复并声明与现有立面的连续性,以及反射的表皮,融合了天空中的新体量
新建筑由两个简单的元素组成:窗户赋予的节奏,重复并声明与现有立面的连续性,以及反射的表皮,融合了天空中的新体量 ©Javier Callejas
Pratic 1 (2011) & Pratic 2 (2018)

PRATIC 2

Project data

LocationFagagna, Udine
ClientPratic F.lli Orioli Spa
ChronologyDesign phase: 2016Construction: 02.2017 / 04.2018
Dimensional dataIntervention area: 30.000 sqmProduction: 7.520 sqmOffices and services: 730 sqmLoading area: 1.800 sqmLandscape: 22.000 sqmparking lot: 70 places
Architecture and landscapedesignGEA Gri e Zucchi Architettura srlarch. Stefania Anzil (project manager)arch. Alessia Dorigoarch. Matteo Compriarch. Elisa Mansutti
Structural designIng. A. Nutta, Nuttassociati
Mechanical and electrical designE4F Srl
Acoustic comfort adviceStudio Musolla
ContractorsPre-Systems Spa (prefabricated structure) Slurry Srl (landscape and building works) Vaportermica Commerciale Srl (Mechanical plants) Impresa Tonon Spa (Electrical plants) Pavarin F.lli Snc (Window frames and facade cladding) Iron+ Srl (carpentry works) Multitema Srl (Interior finishings and furniture) Adotta Italia Srl (System walls)
PhotographerJavier Callejas
